RGB(RG) Laser and RGB(RG) Fiber Laser
RGB(RG) Laser and RGB(RG) Fiber Laser
Shanghai Dream Laser Technology 社(SDL)は、自社で製造した部品を使い DPSS Laser を一貫して製造しています。
RGB Laser/Fiber Output RG は赤(635, 660, 671nm)、緑(532nm)、青(457, 473nm)を組み合わせ、 小型・軽い・低価格なレーザーをご提供いたします。
DPSS RGBレーザー(赤、緑、青)はサイズが小さく、軽量で低コストであるため、多くの新しいアプリケーション分野があり、次のことができます。新しいタイプのスペースAO変調と併用して、画像と色の品質を向上させます。また、レーザープロジェクションイメージングに非常に適しています。
RGBレーザープロジェクターシステムは、角度の位置とビーム強度の両方を制御する高速音響光学デフレクターを備えています。(機械的な動きがありません。)また、コリメートされた放射線源として、連続波(CW)レーザーの赤(630-680 nm)も特色の1つです。

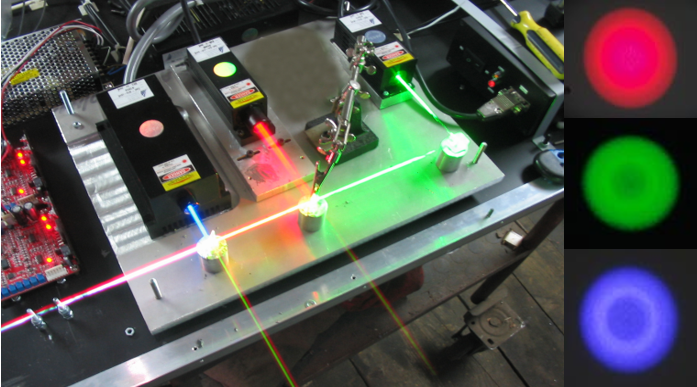

RGBレーザープロジェクターシステムは、3つの主要なユニットであるPCベースのコントロールユニット(CU)とPU、レーザー設置用の光学台で構成されています。このシステムは、特定のタイプのレーザー、つまり、アルゴンおよびクリプトンイオンガスレーザーと連携して動作します。 (CW色素レーザー、DPSSレーザー。)
RGB (RG)Laser
仕様例:
RGB 635nm Laser
- Model: SDL-635-RGB-XXXT
- Output Power @25℃: 100~5,000mW
- Wavelength: Read at 635nm, Green at 532nm
- Operation Mode: CW
- Transverse Mode: TE00/TEM00/TEM00
- Operating Temperature: 10~35℃
- Beam Divergence (1/e2, Full Angle): <5mrad
- Input Voltage: 90~264VAC
- Modulation: TTL Modulation 1-10kHz or Analog Modulation 1-10kHz
- Expect life time: 10,000 hours
- Warranty time: 1 year
※ 下記ご案内できます。
A. RGB-635 (Wavelength: 635nm, 532nm, 473nm/Output Power: 100~5,000mW)
B. RGB-660 (Wavelength: 660nm, 532nm, 473nm/Output Power: 100~5,000mW)
C. RGB-671 (Wavelength: 671nm, 532nm, 457nm/Output Power: 100~8,000mW)
D. RG-635 (Wavelength: 635nm, 532nm/Output Power: 100~3,000mW)
E. RG-650 (Wavelength: 650nm, 532nm/Output Power: 200~3,000mW)
F. RG-660 (Wavelength: 660nm, 532nm/Output Power: 100~3,000mW)
G. RG-671 (Wavelength: 671nm, 532nm/Output Power: 100~8,000mW)

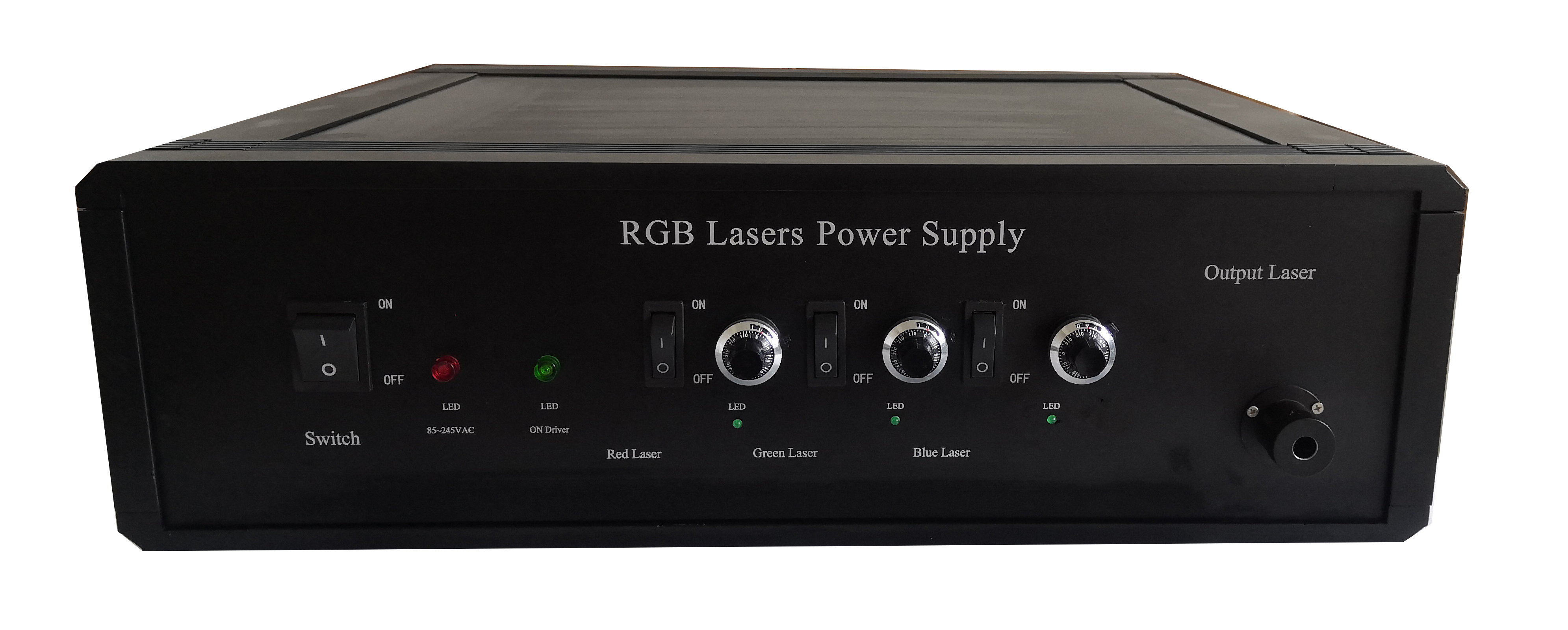

Fiber Output RGB & RG Lasers
仕様例:
- Output Power @25℃: 100~2000mW
- Wavelength:Red at 635 (650, 671)nm, Green at 532nm, Blue at 457 (473)nm
- Operation Mode: CW
- Transverse Mode: TE00/TEM00/TEM00
- Output Mode: Fiber output
- Operating Temperature: 10~35℃
- Beam Divergence (1/e2, Full Angle): <5mrad
- Beam Diameter at the aperture: <6mm
- Modulation: <TTL Modulation 1-10kHz or Analog Modulation 1-10kHz
- Input Voltage: 90~264VAC
- Expected life time: 10,000hours
- Warranty time: 1 year
※ 下記ご案内できます。
A. SDL-635-RGB-150MFL
Wavelength/Output Power (at the end of fiber):
・635nm/50mW
・532nm/50mW
・457nm/50mW
・200um MM fiber with FC connector
B. SDL-635-RGB-1000MFL
Wavelength/Output Power (at the end of fiber):
・635nm/300mW
・532nm/300mW
・457nm/300mW
・200um MM fiber with FC connector
C. SDL-635-RG-100MFL
Wavelength/Output Power (at the end of fiber):
・635nm/50mW
・532nm/50mW
・200um MM fiber with FC connector
D. SDL-635-RG-1000MFL
Wavelength/Output Power (at the end of fiber)
・635nm/500mW
・532nm/500mW
・200um MM fiber with FC connector
