Sheaumann
Sheaumann Laser社 785~1064nm LD
Sheaumann Laser, Inc.は、様々な分野の複雑な課題に対する画期的なソリューションをご案内するアメリカのレーザーダイオードメーカーです。
Sheaumann社はパッケージ半導体業界のパイオニアであるJim Hsieh氏によって
2005年に設立され、当社の前身であるLasertron社は、1980年代から1990年代の光ファイバー通信技術開発が全盛の時代にレーザーの大手製造業者になりました。
2015年にはSheaumann社は Axcel Photonicsと合併し、Sheaumann社の設計およびパッケージング能力にエピタキシャル成長およびウェハ処理能力が加わりました。
2019年にマサチューセッツ州から助成金を受けたことで波長範囲を拡大し、新しい本社へ移転致しました。
レーザー製造会社が頻繁に所有権を変更し、生産を海外に移転している時代の中で、
当社は変わらず、アメリカで製造を維持するというビジョンを堅持しています。

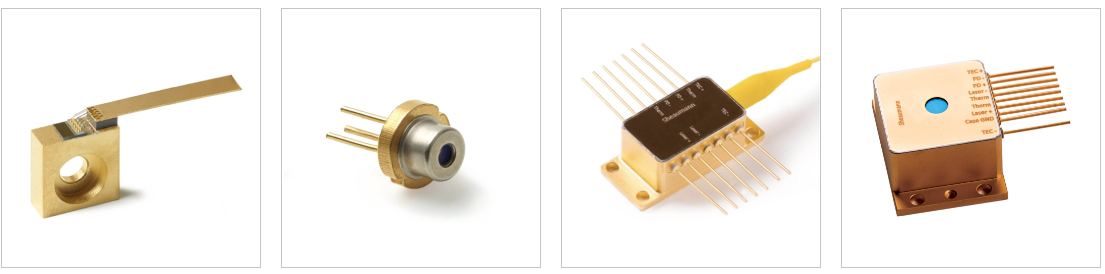

パッケージタイプ
当社の製品は785~1064nmの波長帯で様々なパッケージタイプがございます。
B2 (Butterfly) / BF (Butterfly)
QA (Basemount) / BM (Basemount)
C2 (Basemount) / C4 (Basemount)
CM (C-mount, standard) / CMC (C-mount, isolated) / CMD
MIR (MIR pac) / M5 (TO-can, 5.6mm)
M9F (TO-can, 9mm with FC/PC Connector) / M9T (TO-can, 9mm tall)
HHL (High Heat Load; 高熱負荷) / HHL with fiber coupled
※CMとCTパッケージは現在、ご案内を停止しております。
製品一覧
Package Type | Package | Mode | Wavelength | Power | Model |
Butterfly | BF | Single | 785nm | 70mW | B-Series-BF-SM-785-70mW |
Butterfly | B2 | Multi | 785nm | 500mW | B-Series-B2-MM-785-0500-1LA |
Submount | QA | Single | 785nm | 80mW | S-Series-QA-SM-785nm-80mW |
Submount | QA | Single | 785nm | 150mW | S-Series-QA-SM-785nm-150mW |
Submount | BM | Single | 785nm | 150mW | S-Series-BM-SM-785nm-150mW |
Submount | BM | Single | 785nm | 150mW | S-Series-BM-SM-785nm-80mW |
Submount | C2 | Single | 785nm | 150mW | S-Series-C2-SM-785-150mW |
Submount | C2 | Single | 785nm | 80mW | S-Series-C2-SM-785-80mW |
Submount | C4 | Single | 785nm | 150mW | S-Series-C4-SM-785-150mW |
Submount | C4 | Multi | 785nm | 2W | S-Series-C4-MM-785-2W-100um |
Submount | C4 | Single | 785nm | 80mW | S-Series- CM-MM-785-1W-100 with VBG |
Submount | CM | Multi | 785nm | 1W | S-Series-C4-SM-785-150mW |
Submount | CMC | Multi | 785nm | 1.5W | S-Series-CMC-785-1500-1XX |
Submount | CMC | Multi | 785nm | 2W | S-Series-CMC-785-2000-1XX |
Submount | CM | Multi | 785nm | 1.5W | S-Series-CM-MM-785-1.5W-100 |
Submount | CM | Multi | 785nm | 1W | S-Series-CM-MM-785-1W-100 |
Submount | CM | Multi | 785nm | 2W | S-Series-CM-MM-785-2W-100 |
Submount | QA | Multi | 785nm | 1.5W | S-Series-QA-MM-785nm-1.5W-100um |
Submount | QA | Multi | 785nm | 1W | S-Series-QA-MM-785nm-1W-100um |
Submount | QA | Multi | 785nm | 2W | S-Series-QA-MM-785nm-2W-100um |
Submount | CMD | Multi | 785nm | 1.5W | S-Series-CMD-785-1500-1XX |
Submount | CMD | Multi | 785nm | 2W | S-Series-CMD-785-2000-1XX |
Submount | CT | Multi | 785nm | 1.5W | S-Series-CT-785-1500-1XX |
Submount | CT | Multi | 785nm | 2W | S-Series-CT-785-2000-1XX |
TO | M9T | Single | 785nm | 300mW | T-Series-M9T-SM-785-300mW |
TO | M9 | Single | 785nm | 1.5W | T-Series-M9-MM-785nm-100um-1W,1.5W |
TO | M9 | Single | 785nm | 150mW | T-Series-M9-SM-785-150mW |
TO | M9 | Single | 785nm | 80mW | T-Series-M9-SM-785-80mW |
TO | M5 | Single | 785nm | 80mW | T-Series-M5-SM-785-80mW |
Butterfly | BF | Single | 808nm | 70mW | B-Series-BF-SM-808-70mW |
HHL | HW | Multi | 808nm | 15W | H-Series- HW-MM-808-015W-4XX |
Submount | C2 | Single | 808nm | 100mW | S-Series-C2-SM-808-100mW |
Submount | C2 | Single | 808nm | 150mW | S-Series-C2-SM-808-150mW |
Submount | C2 | Single | 808nm | 50mW | S-Series-C2-SM-808-50mW |
Submount | CLe | Multi | 808nm | 15W | S-Series-CL-MM-808-15W-400um |
Submount | CMC | Multi | 808nm | 1.5W | S-Series-CMC-808-1500-0XX |
Submount | CMC | Multi | 808nm | 10W | S-Series-CMC-808-010W-4XX |
Submount | CMC | Multi | 808nm | 1W | S-Series-CMC-808-1000-0XX |
Submount | CMC | Multi | 808nm | 2W | S-Series-CMC-808-2000-1XX |
Submount | CMC | Multi | 808nm | 3W | S-Series-CMC-808-3000-13M |
Submount | CMC | Multi | 808nm | 3W | S-Series-CMC-808-3000-2XX |
Submount | CMC | Multi | 808nm | 4W | S-Series-CMC-808-4000-2XX |
Submount | CMC | Multi | 808nm | 500mW | S-Series-CMC-808-0500-0XX |
Submount | CMC | Multi | 808nm | 5W | S-Series-CMC-808-5000-2XX |
Submount | CMC | Multi | 808nm | 6W | S-Series-CMC-808-6000-2XX |
Submount | CMC | Multi | 808nm | 8W | S-Series-CMC-808-8000-4XX |
Submount | CM | Multi | 808nm | 1.5W | S-Series-CM-MM-808-1.5W-50 |
Submount | CM | Multi | 808nm | 10W | S-Series-CM-MM-808-10W-400 |
Submount | CM | Multi | 808nm | 1W | S-Series-CM-MM-808-1W-50 |
Submount | CM | Multi | 808nm | 3W | S-Series-CM-MM-808-3W-200 |
Submount | CM | Multi | 808nm | 4W | S-Series-CM-MM-808-4W-200 |
Submount | CM | Multi | 808nm | 500mW | S-Series-CM-MM-808-500mW-50 |
Submount | CM | Multi | 808nm | 5W | S-Series-CM-MM-808-5W-200 |
Submount | CM | Multi | 808nm | 6W | S-Series-CM-MM-808-6W-200 |
Submount | CM | Multi | 808nm | 8W | S-Series-CM-MM-808-8W-200 |
Submount | QA | Multi | 808nm | 1W | S-Series-QA-MM-808nm-1W-100um |
Submount | QA | Multi | 808nm | 1W | S-Series-QA-MM-808nm-1W-50um |
Submount | QA | Multi | 808nm | 1.5W | S-Series-QA-MM-808nm-1.5W-50um |
Submount | QA | Multi | 808nm | 2W | S-Series-QA-MM-808nm-2W-100um |
Submount | QA | Multi | 808nm | 3W | S-Series-QA-MM-808nm-3W-200um |
Submount | QA | Multi | 808nm | 4W | S-Series-QA-MM-808nm-4W-200um |
Submount | QA | Multi | 808nm | 500mW | S-Series-QA-MM-808nm-500mW-50um |
Submount | CMD | Multi | 808nm | 1.5W | S-Series- CMD-808-1500-0XX |
Submount | CMD | Multi | 808nm | 10W | S-Series- CMD-808-010W-4XX |
Submount | CMD | Multi | 808nm | 1W | S-Series- CMD-808-1000-0XX |
Submount | CMD | Multi | 808nm | 2W | S-Series- CMD-808-2000-1XX |
Submount | CMD | Multi | 808nm | 3W | S-Series- CMD-808-3000-13M |
Submount | CMD | Multi | 808nm | 3W | S-Series- CMD-808-3000-2XX |
Submount | CMD | Multi | 808nm | 4W | S-Series- CMD-808-4000-2XX |
Submount | CMD | Multi | 808nm | 500mW | S-Series- CMD-808-0500-0XX |
Submount | CMD | Multi | 808nm | 5W | S-Series- CMD-808-5000-2XX |
Submount | CMD | Multi | 808nm | 6W | S-Series-CMD-808-6000-2XX0 |
Submount | CMD | Multi | 808nm | 8W | S-Series-CMD-808-8000-4XX0 |
Submount | CS | Multi | 808nm | 20W | S-Series- CS-808-020W-65M |
Submount | CT | Multi | 808nm | 1.5W | S-Series- CT-808-1500-0XX |
Submount | CT | Multi | 808nm | 10W | S-Series-CT-808-010W-4XX |
Submount | CT | Multi | 808nm | 1W | S-Series-CT-808-1000-1XX |
Submount | CT | Multi | 808nm | 2W | S-Series-CT-808-2000-1XX |
Submount | CT | Multi | 808nm | 3W | S-Series-CT-808-3000-13M |
Submount | CT | Multi | 808nm | 3W | S-Series-CT-808-3000-2XX |
Submount | CT | Multi | 808nm | 4W | S-Series-CT-808-4000-2XX |
Submount | CT | Multi | 808nm | 500mW | S-Series- CT-808-0500-0XX |
Submount | CT | Multi | 808nm | 5W | S-Series-CT-808-5000-2XX |
Submount | CT | Multi | 808nm | 6W | S-Series-CT-808-6000-2XX |
Submount | CT | Multi | 808nm | 8W | S-Series-CT-808-8000-4XX |
TO | M9T | Multi | 808nm | 3W | T-Series-M9T-MM-808-3W |
TO | M9 | Single | 808nm | 100mW | T-Series-M9-SM-808-100mW |
TO | M9 | Single | 808nm | 150mW | T-Series-M9-SM-808-150mW |
TO | M9 | Multi | 808nm | 2W | T-Series-M9-MM-808nm-100um-1W, 2W |
TO | M9 | Multi | 808nm | 500mW | T-Series-M9-MM-808nm-50um-500mW,1W |
TO | M9 | Single | 808nm | 50mW | T-Series-M9-SM-808-50mW |
TO | M5 | Single | 808nm | 200mW | T-Series-M5-MM-808-200mW-50um |
TO | M5 | Single | 808nm | 500mW | T-Series-M5-MM-808-500mW-50um |
TO | M9F | Multi | 808nm | 1W | Fiber Coupled M9F-808nm 1W |
HHL | HW | Multi | 808nm | 3W | H-Series-HW-MM-808-3W-200 |
HHL | HW | Multi | 808nm | 8W | H-Series-HW-MM-808-8W-200 |
HHL with fiber coupled | HW | Multi | 808nm | 6W | H-Series- HF-MM-808-6000-1XX |
HHL with fiber coupled | HW | Multi | 808nm | 7.5W | H-Series- HF-MM-808-7500-2XXX |
Butterfly | BF | Single | 830nm | 70mW | B-Series-BF-SM-830-70mW |
Butterfly | BF | Single | 830nm | 100mW | B-Series-BF-SM-830-100mW |
Submount | C2 | Single | 830nm | 50mW | S-Series-C2-SM-830-50mW |
Submount | C2 | Single | 830nm | 100mW | S-Series-C2-SM-830-100mW |
Submount | C2 | Single | 830nm | 150mW | S-Series-C2-SM-830-150mW |
Submount | C4 | Multi | 830nm | 2W | S-Series-C4-MM-830-2W-50um |
Submount | C4 | Multi | 830nm | 2W | S-Series-C4-MM-830-2W-100um |
Submount | CMC | Multi | 830nm | 1W | S-Series-CMC-830-1000-0XX |
Submount | CMC | Multi | 830nm | 1W | S-Series-CMC-830-1000-1XX |
Submount | CMC | Multi | 830nm | 1.5W | S-Series-CMC-830-1500-0XX |
Submount | CMC | Multi | 830nm | 2W | S-Series-CMC-830-2000-1XX |
Submount | CM | Multi | 830nm | 1W | S-Series-CM-MM-830-1W-100 |
Submount | CM | Multi | 830nm | 1W | S-Series-CM-MM-830-1W-50 |
Submount | CM | Multi | 830nm | 1.5W | S-Series-CM-MM-830-1.5W-50 |
Submount | CM | Multi | 830nm | 2W | S-Series-CM-MM-830-2W-100 |
Submount | QA | Multi | 830nm | 1W | S-Series-QA-MM-830nm-1W-100um |
Submount | QA | Multi | 830nm | 1W | S-Series-QA-MM-830nm-1W-50um |
Submount | QA | Multi | 830nm | 1.5W | S-Series-QA-MM-830nm-1.5W-50um |
Submount | QA | Multi | 830nm | 2W | S-Series-QA-MM-830nm-2W-100um |
Submount | CMD | Multi | 830nm | 1W | S-Series-CMD-830-1000-0XX |
Submount | CMD | Multi | 830nm | 1W | S-Series-CMD-830-1000-1XX |
Submount | CMD | Multi | 830nm | 1.5W | S-Series- CMD-830-1500-0XX |
Submount | CMD | Multi | 830nm | 2W | S-Series-CMD-830-2000-1XX |
Submount | CT | Multi | 830nm | 1W | S-Series-CT-830-1000-0XX |
Submount | CT | Multi | 830nm | 1W | S-Series-CT-830-1000-1XX |
Submount | CT | Multi | 830nm | 1.5W | S-Series- CT-830-1500-0XX |
Submount | CT | Multi | 830nm | 2W | S-Series-CT-830-2000-1XX |
TO | M9T | Single | 830nm | 150mW | T-Series-M9T-SM-830-150mW |
TO | M9T | Single | 830nm | 300mW | T-Series-M9T-SM-830-300mW |
TO | M9T | Single | 830nm | 450mW | T-Series-M9T-SM-830-450mW |
TO | M9 | Single | 830nm | 100mW | T-Series-M9-SM-830-100mW |
TO | M9 | Single | 830nm | 150mW | T-Series-M9-SM-830-150mW |
TO | M9 | Multi | 830nm | 1W | T-Series-M9-MM-830nm-100um-1W |
TO | M9 | Multi | 830nm | 1W | T-Series-M9-MM-830nm-50um-1W |
TO | M9 | Single | 830nm | 50mW | T-Series-M9-SM-830-50mW |
TO | M9 | Single | 830nm | 300mW | T-Series-M9-SM-830-300mW |
TO | M5 | Single | 830nm | 300mW | T-Series-M5-SM-830-50mW |
TO | M5 | Single | 840nm | 50mW | T-Series-M5T-SM-840-50mW |
Submount | C2 | Single | 852nm | 100mW | S-Series-C2-SM-852-100mW |
Submount | C2 | Single | 852nm | 150mW | S-Series-C2-SM-852-100mW |
Submount | C4 | Multi | 852nm | 2W | S-Series-C4-MM-852-2W-100um |
Submount | CMC | Multi | 852nm | 1W | S-Series-CMC-852-1000-0XX |
Submount | CMC | Multi | 852nm | 1W | S-Series-CMC-852-1000-1XX |
Submount | CMC | Multi | 852nm | 1.5W | S-Series-CMC-852-1500-0XX |
Submount | CMC | Multi | 852nm | 2W | S-Series-CMC-852-2000-1XX |
Submount | CMC | Multi | 852nm | 3W | S-Series-CMC-852-3000-1XX |
Submount | CM | Multi | 852nm | 1W | S-Series-CM-MM-852-1W-100 |
Submount | CM | Multi | 852nm | 1W | S-Series-CM-MM-852-1W-50 |
Submount | CM | Multi | 852nm | 1.5W | S-Series-CM-MM-852-1.5W-50 |
Submount | CM | Multi | 852nm | 2W | S-Series-CM-MM-852-2W-100 |
Submount | CM | Multi | 852nm | 3W | S-Series-CM-MM-852-3W-100 |
Submount | QA | Multi | 852nm | 1W | S-Series-QA-MM-852nm-1W-100um |
Submount | QA | Multi | 852nm | 1W | S-Series-QA-MM-852nm-1W-50um |
Submount | QA | Multi | 852nm | 1.5W | S-Series-QA-MM-852nm-1.5W-50um |
Submount | QA | Multi | 852nm | 2W | S-Series-QA-MM-852nm-2W-100um |
Submount | QA | Multi | 852nm | 3W | S-Series-QA-MM-852nm-3W-100um |
Submount | CMD | Multi | 852nm | 1W | S-Series-CMD-852-1000-0XX |
Submount | CMD | Multi | 852nm | 1W | S-Series-CMD-852-1000-1XX |
Submount | CMD | Multi | 852nm | 1.5W | S-Series-CMD-852-1500-0XX |
Submount | CMD | Multi | 852nm | 2W | S-Series-CMD-852-2000-1XX |
Submount | CMD | Multi | 852nm | 3W | S-Series-CMD-852-3000-1XX |
Submount | CT | Multi | 852nm | 1W | S-Series-CT-852-1000-0XX |
Submount | CT | Multi | 852nm | 1W | S-Series-CT-852-1000-1XX |
Submount | CT | Multi | 852nm | 3W | S-Series-CT-852-3000-1XX |
TO | M9T | Single | 852nm | 300mW | T-Series-M9T-SM-852-300mW |
TO | M9 | Single | 852nm | 100mW | T-Series-M9-SM-852-100mW |
TO | M9 | Single | 852nm | 150mW | T-Series-M9-SM-852-150mW |
TO | M9 | Multi | 852nm | 1W | T-Series-M9-MM-852nm-100um-1W |
TO | M9 | Multi | 852nm | 1W | T-Series-M9-MM-852nm-50um-1W |
Submount | C2 | Single | 915nm | 200mW | S-Series-C2-SM-915-200mW |
Submount | C2 | Single | 915nm | 300mW | S-Series-C2-SM-915-300mW |
Submount | C4 | Single | 915nm | 1W | S-Series-C4-MM-915-1W-100um |
Submount | C4 | Multi | 915nm | 2W | S-Series-C4-MM-915-2W-100um |
Submount | C4 | Multi | 915nm | 3W | S-Series-C4-MM-915-3W-100um |
Submount | CLe | Multi | 915nm | 8W | S-Series-CL-MM-915-8W-100um |
Submount | CMC | Multi | 915nm | 1W | S-Series-CMC-915-1000-1XX |
Submount | CMC | Multi | 915nm | 2W | S-Series-CMC-915-2000-1XX |
Submount | CMC | Multi | 915nm | 3W | S-Series-CMC-915-3000-1XX |
Submount | CM | Multi | 915nm | 1W | S-Series-CM-MM-915-1W-100 |
Submount | CM | Multi | 915nm | 2W | S-Series-CM-MM-915-2W-100 |
Submount | CM | Multi | 915nm | 3W | S-Series-CM-MM-915-3W-100 |
Submount | QA | Multi | 915nm | 1W | S-Series-QA-MM-915nm-1W-50um |
Submount | QA | Multi | 915nm | 1.5W | S-Series-QA-MM-915nm-1.5W-50um |
Submount | CMD | Multi | 915nm | 1W | S-Series-CMD-915-1000-1XX |
Submount | CMD | Multi | 915nm | 2W | S-Series-CMD-915-2000-1XX |
Submount | CMD | Multi | 915nm | 3W | S-Series-CMD-915-3000-1XX |
Submount | CT | Multi | 915nm | 1W | S-Series-CT-915-1000-1XX |
Submount | CT | Multi | 915nm | 2W | S-Series- CT-915-2000-1XX |
Submount | CT | Multi | 915nm | 3W | S-Series- CT-915-3000-1XX |
TO | M9 | Multi | 915nm | 1W | T-Series-M9-MM-915nm-100um-1W |
TO | M9 | Single | 915nm | 200mW | T-Series-M9-SM-915-200mW |
TO | M9 | Single | 915nm | 300mW | T-Series-M9-SM-915-300mW |
TO | M9 | Multi | 915nm | 500mW | T-Series-M9-MM-915nm-50um-500mW |
TO | M5 | Multi | 915nm | 500mW | T-Series-M5-MM-915-500mW-50um |
Butterfly | BF | Single | 940nm | 50mW | B-Series-BF-SM-940-0050-PPF |
Butterfly | BF | Single | 94-nm | 70mW | B-Series-BF-SM-940-200mW |
Submount | C2 | Single | 940nm | 100mW | S-Series-C2-SM-940-100mW |
Submount | C2 | Single | 940nm | 200mW | S-Series-C2-SM-940-200mW |
Submount | C2 | Single | 940nm | 300mW | S-Series-C2-SM-940-300mW |
Submount | C4 | Multi | 940nm | 3W | S-Series-C4-MM-940-3W-100um |
Submount | C4 | Multi | 940nm | 4W | S-Series-C4-MM-940-4W-100um |
Submount | CMC | Multi | 940nm | 1.5W | S-Series-CMC-940-1500-1XX |
Submount | CMC | Multi | 940nm | 3W | S-Series-CMC-940-3000-1XX |
Submount | CMC | Multi | 940nm | 4W | S-Series-CMC-940-4000-1XX |
Submount | CM | Multi | 940nm | 1.5W | S-Series-CM-MM-940-1.5W-100 |
Submount | CM | Multi | 940nm | 3W | S-Series-CM-MM-940-3W-100 |
Submount | CM | Multi | 940nm | 4W | S-Series-CM-MM-940-3W-100 |
Submount | QA | Multi | 940nm | 1.5W | S-Series-QA-MM-940nm-1.5W-100um |
Submount | QA | Multi | 940nm | 3W | S-Series-QA-MM-940nm-3W-100um |
Submount | QA | Multi | 940nm | 4W | S-Series-QA-MM-940nm-4W-200um |
Submount | CMD | Multi | 940nm | 1.5W | S-Series- CMD-940-1500-1XX |
Submount | CMD | Multi | 940nm | 3W | S-Series- CMD-940-3000-1XX |
Submount | CMD | Multi | 940nm | 4W | S-Series- CMD-940-4000-2XX |
Submount | CT | Multi | 940nm | 1.5W | S-Series- CT-940-1500-1XX |
Submount | CT | Multi | 940nm | 3W | S-Series- CT-940-3000-1XX |
Submount | CT | Multi | 940nm | 4W | S-Series- CT-940-4000-2XX |
TO | M9T | Single | 940nm | 500mW | T-Series-M9T-SM-940-500mW |
TO | M9 | Single | 940nm | 100mW | T-Series-M9-SM-940-100mW |
TO | M9 | Single | 940nm | 200mW | T-Series-M9-MM-940nm-100um-1W |
TO | M9 | Single | 940nm | 300mW | T-Series-M9-SM-940-300mW |
TO | M9 | Single | 940nm | 1W | T-Series-M9-SM-940-200mW |
Submount | C3 | Multi | 975nm | 500mW | S-Series-C3-SM-975-500mW |
Submount | C4 | Multi | 975nm | 1W | S-Series-C4-MM-975-1W-100um |
Submount | C4 | Multi | 975nm | 1W | S-Series-C4-MM-975-1W-50um |
Submount | C4 | Multi | 975nm | 1.5W | S-Series-C4-MM-975-1.5W-50um |
Submount | C4 | Multi | 975nm | 2W | S-Series-C4-MM-975-2W-100um |
Submount | C4 | Multi | 975nm | 3W | S-Series-C4-MM-975-3W-100um |
Submount | C4 | Multi | 975nm | 3W | S-Series-C4-MM-975-3W-200um |
Submount | CLe | Multi | 975nm | 15W | S-Series-CL-MM-975-15W-400um |
Submount | CMC | Multi | 975nm | 1W | S-Series-CMC-975-1000-0XX |
Submount | CMC | Multi | 975nm | 1W | S-Series-CMC-975-1000-1XX |
Submount | CMC | Multi | 975nm | 1.5W | S-Series-CMC-975-1500-0XX |
Submount | CMC | Multi | 975nm | 2W | S-Series-CMC-975-2000-1XX |
Submount | CMC | Multi | 975nm | 3W | S-Series-CMC-975-3000-1XX |
Submount | CMC | Multi | 975nm | 3W | S-Series-CMC-975-3000-2XX |
Submount | CMC | Multi | 975nm | 4W | S-Series-CMC-975-4000-2XX |
Submount | CMC | Multi | 975nm | 5W | S-Series-CMC-975-5000-2XX |
Submount | CMC | Multi | 975nm | 6W | S-Series-CMC-975-6000-2XX |
Submount | CMC | Multi | 975nm | 8W | S-Series-CMC-975-8000-4XX |
Submount | CMC | Multi | 975nm | 10W | S-Series-CMC-975-010W-4XX |
Submount | CM | Multi | 975nm | 1W | S-Series-CM-MM-975-1W-50 |
Submount | CM | Multi | 975nm | 1W | S-Series-CM-MM-975-1W-100 |
Submount | CM | Multi | 975nm | 1.5W | S-Series-CM-MM-975-1.5W-50 |
Submount | CM | Multi | 975nm | 2W | S-Series-CM-MM-975-2W-100 |
Submount | CM | Multi | 975nm | 3W | S-Series-CM-MM-975-3W-100 |
Submount | CM | Multi | 975nm | 3W | S-Series-CM-MM-975-3W-200 |
Submount | CM | Multi | 975nm | 4W | S-Series-CM-MM-975-4W-200 |
Submount | CM | Multi | 975nm | 5W | S-Series-CM-MM-975-5W-200 |
Submount | CM | Multi | 975nm | 6W | S-Series-CM-MM-975-6W-200 |
Submount | CM | Multi | 975nm | 8W | S-Series-CM-MM-975-8W-400 |
Submount | CM | Multi | 975nm | 10W | S-Series-CM-MM-975-10W-400 |
Submount | QA | Multi | 975nm | 1W | S-Series-QA-MM-975nm-1W-50um |
Submount | QA | Multi | 975nm | 1W | S-Series-QA-MM-975nm-1W-100um |
Submount | QA | Multi | 975nm | 1.5W | S-Series-QA-MM-975nm-1.5W-50um |
Submount | QA | Multi | 975nm | 2W | S-Series-QA-MM-975nm-2W-100um |
Submount | QA | Multi | 975nm | 3W | S-Series-QA-MM-975nm-3W-100um |
Submount | QA | Multi | 975nm | 3W | S-Series-QA-MM-975nm-3W-200um |
Submount | CMD | Multi | 975nm | 1W | S-Series- CMD-975-1000-0XX |
Submount | CMD | Multi | 975nm | 1W | S-Series- CMD-975-1000-1XX |
Submount | CMD | Multi | 975nm | 1.5W | S-Series- CMD-975-1500-0XX |
Submount | CMD | Multi | 975nm | 2W | S-Series- CMD-975-2000-1XX |
Submount | CMD | Multi | 975nm | 3W | S-Series- CMD-975-3000-1XX |
Submount | CMD | Multi | 975nm | 3W | S-Series- CMD-975-2000-2XX |
Submount | CMD | Multi | 975nm | 4W | S-Series- CMD-975-4000-2XX |
Submount | CMD | Multi | 975nm | 5W | S-Series- CMD-975-5000-2XX |
Submount | CMD | Multi | 975nm | 6W | S-Series- CMD-975-8000-2XX |
Submount | CMD | Multi | 975nm | 8W | S-Series- CMD-975-4000-2XX |
Submount | CMD | Multi | 975nm | 10W | S-Series- CMD-975-010W-4XX |
Submount | CT | Multi | 975nm | 1W | S-Series- CT-975-1000-0XX |
Submount | CT | Multi | 975nm | 1W | S-Series- CT-975-1000-1XX |
Submount | CT | Multi | 975nm | 1.5W | S-Series- CT-975-1500-0XX |
Submount | CT | Multi | 975nm | 2W | S-Series- CT-975-2000-1XX |
Submount | CT | Multi | 975nm | 3W | S-Series- CT-975-3000-1XX |
Submount | CT | Multi | 975nm | 3W | S-Series- CT-975-3000-2XX |
Submount | CT | Multi | 975nm | 4W | S-Series- CT-975-4000-2XX |
Submount | CT | Multi | 975nm | 5W | S-Series- CT-975-5000-2XX |
Submount | CT | Multi | 975nm | 6W | S-Series- CT-975-6000-2XX |
Submount | CT | Multi | 975nm | 8W | S-Series- CT-975-8000-4XX |
Submount | CT | Multi | 975nm | 10W | S-Series- CT-975-010W-4XX |
TO | M9T | Single | 975nm | 500mW | T-Series-M9T-SM-975-500mW |
TO | M9T | Single | 975nm | 650mW | T-Series-M9T-SM-975-650mW |
TO | M9 | Multi | 975nm | 1W | T-Series-M9-MM-975-1W-150-SANWA |
TO | M9 | Multi | 975nm | 1W | T-Series-M9-MM-975-1W-150 |
TO | M9 | Single | 975nm | 200mW | T-Series-M9-SM-975-200mW |
TO | M9 | Single | 975nm | 300mW | T-Series-M9-SM-975-300mW |
TO | M5 | Multi | 975nm | 200mW | T-Series-M5-MM-975-200mW-50um |
TO | M5 | Multi | 975nm | 500mW | T-Series-M5-MM-975-500mW-50um |
Butterfly | BF | Single | 975nm | 200mW | B-Series-BF-SM-980-200mW |
Butterfly | BF | Single | 975nm | 300mW | B-Series-BF-SM-980-300mW |
HHL with fiber coupled | HW | Multi | 975nm | 10W | H-Series- HF-MM-975-010W-2XX |
Submount | C2 | Single | 980nm | 100mW | S-Series-C2-SM-980-100mW |
Submount | C2 | Single | 980nm | 200mW | S-Series-C2-SM-980-200mW |
Submount | C2 | Single | 980nm | 300mW | S-Series-C2-SM-980-300mW |
Butterfly | BF | Single | 980nm | 200mW | B-Series-BF-SM-1064-200mW |
TO | M5 | Single | 980nm | 70mW | M5F-980nm 70mW |
Submount | C2 | Single | 1064nm | 200mW | S-Series-C2-SM-1064-200mW |
Submount | C2 | Single | 1064nm | 300mW | S-Series-C2-SM-1064-300mW |
Submount | C4 | Multi | 1064nm | 2W | S-Series-C4-MM-1064-2W-50um |
Submount | C4 | Multi | 1064nm | 3W | S-Series-C4-MM-1064-3W-100um |
Submount | CMC | Multi | 1064nm | 1W | S-Series-CMC-A64-1000-1XX |
Submount | CMC | Multi | 1064nm | 2W | S-Series-CMC-A64-2000-1XX |
Submount | CM | Multi | 1064nm | 1W | S-Series-CM-MM-1064-1W-100 |
Submount | CM | Multi | 1064nm | 2W | S-Series-CM-MM-1064-2W-100 |
Submount | CM | Multi | 1064nm | 3W | S-Series-CM-MM-1064-3W-100 |
Submount | QA | Multi | 1064nm | 1W | S-Series-QA-MM-1064nm-1W-100um |
Submount | QA | Multi | 1064nm | 2W | S-Series-QA-MM-1064nm-2W-100um |
Submount | QA | Multi | 1064nm | 3W | S-Series-QA-MM-1064nm-3W-100um |
Submount | CT | Multi | 1064nm | 1W | S-Series- CT-A64-1000-1XX |
Submount | CT | Multi | 1064nm | 2W | S-Series- CT-A64-2000-1XX |
TO | M9T | Single | 1064nm | 650mW | T-Series-M9T-SM-1064-650mW |
TO | M9 | Single | 1064nm | 100mW | T-Series-M9-SM-1064-100mW |
TO | M9 | Single | 1064nm | 200mW | T-Series-M9-SM-1064-200mW |
TO | M9 | Single | 1064nm | 300mW | T-Series-M9-SM-1064-300mW |
TO | M9 | Multi | 1064nm | 1W | T-Series-M9-MM-1064nm-100um-1W |
"What would you like to achieve?"
