CNI社 IRレーザー

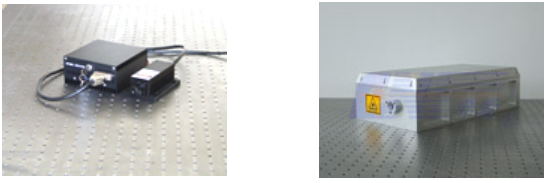

CNI社のIRレーザーはDPSSレーザー (ダイオード励起固体) とダイオードレーザーです。 レーザーヘッドには冷却および精密な温度制御システムが搭載されており、電源には過電流および過熱保護機能が搭載されています。
当社レーザーは安定した出力や簡単な操作、信頼性の高い性能、そして長寿命を備えています。
レーザー製品には、高エネルギー、高出力、狭帯域レーザー、高安定性、低ノイズ、シングル縦モードレーザーの6シリーズがあります。 フリースペースまたはファイバー結合の (SM ファイバー、MM ファイバー、均質化ファイバー) 出力タイプからお選びいただけます。
IRレーザー：種類
| シリーズ | 特徴 | 数値 |
| High energy IR laser | energy | >20μJ |
| High power IR laser | power | >500W |
| Narrow pulsed width IR laser | pulse width | <0.8ns |
| High stability IR laser | stability | <0.1% |
| Low noise IR laser | noise | <0.25% |
| Single longitudinal mode IR laser | line width | <0.00001nm. |
IRレーザー：波長ラインナップ
1. DPSSレーザー
912nm 914nm 946nm 1030nm 1040nm 1047nm 1054nm 1064nm 1073nm
1085nm 1105nm 1112nm 1122nm 1160nm 1177nm 1178nm 1202nm 1313nm
1319nm 1335nm 1338nm 1342nm 1357nm 1413nm 1444nm 1535nm 1573nm 1645nm 1910nm 1940nm 1990nm 2096nm 2117nm 2120nm 2142nm 2128nm
2130nm 2600nm 2700nm 2796nm 2800nm 2830nm 2940nm 3000nm 3200nm
3390nm 3400nm 3600nm 3800nm 3900nm 4000nm 4200nm 4400nm 4500nm
4600nm 4800nm
2. ダイオードレーザー
760nm 785nm 786nm 790nm 793nm 800nm 808nm 820nm 825nm 830nm 845nm 850nm 852nm 860nm 870nm 879nm 880nm 885nm 905nm 915nm 940nm 965nm 975nm 980nm
1020nm 1035nm 1050nm 1060nm 1120nm 1190nm 1208nm 1268nm 1270nm 1275nm 1300nm 1310nm 1320nm 1370nm 1380nm 1392nm 1420nm 1430nm 1450nm 1470nm 1480nm 1490nm 1532nm 1540nm 1550nm 1560nm 1590nm 1600nm 1610nm 1700nm 1710nm 1720nm 1850nm 1870nm 1900nm 1920nm 1930nm 2160nm 2200nm 3100nm 3300nm 3700nm 4100nm
3. ファイバーレーザー
775nm 1080nm 1178nm 1240nm 1484nm
IR (DPSS IR)レーザー：種類
| 波長 (nm) | レーザータイプ | 型番・出力 |
| 912 | High Stability IR Laser | MIL-H-912 / 1~800mW MIL-FN-912 / 1~1000mW |
| 912 | Fiber IR Laser | FC-912 / 1~900mW |
| 914 | Single Longitudinal Mode IR Laser | MSL-U-914-SU / 1~100mW |
| 914 | Low Noise IR Laser | MLL-U-914-SU / 1~400mW MLL-H-914 / 1~800mW |
| 914 | High Stability IR Laser | MIL-H-914 / 1~800mW MIL-U-914-SU / 800~1700mW |
| 914 | Actively Q-switched IR Laser | EO-XS-914 / 1~70uJ / 1~700mW |
| 914 | Fiber IR Laser | FC-914 / 1~1530mW |
| 946 | Single Longitudinal Mode IR Laser | MSL-U-946-SU / 1~100mW |
| 946 | Low Noise IR Laser | MLL-U-946-SU / 1~300mW MLL-H-946 / 1~800mW |
| 946 | High Stability IR Laser | MIL-H-946 / 1~800mW MIL-U-946-SU / 800~1500mW MIL-W-946 / 1.5~5W |
| 946 | Passively Q-switched IR Laser | MPL-U-946-SU / 1~20uJ / 1~150mW MPL-S-946 / 1~50uJ / 1~100mW |
| 946 | Actively Q-switched IR Laser | AO-S-946 / 1~40uJ / 1~150mW AO-Mini-946 / 150~200uJ / 1~500mW |
| 946 | Fiber IR Laser | FC-946 / 1~1350mW |
| 1030 | Single Longitudinal Mode IR Laser | MSL-U-1030-SU / 1~20mW FL-1030-SF / 1~10000mW |
| 1030 | Low Noise IR Laser | MLL-III-1030 / 1~500mW MLL-F-1030 / 1~100mW |
| 1030 | High Stability IR Laser | MDL-III-1030-SM / 1~500mW MDL-III-1030 / 1~500mW MIL-F-1030 / 1~600mW |
| 1030 | TEM00 Mode IR Laser | TEM-F-1030 / 1~500mW TEM00 MDL-III-1030DFB-SM / 1~200mW |
| 1030 | Q-switched IR Laser | MPL-F-1030 / 1~150uJ / 1~300mW AO-W-1030 / 1~130uJ / 1~1300mW |
| 1030 | Picosecond Pulsed IR Laser | PS-R-1030 / 1~300W |
| 1030 | Femtosecond Pulsed IR Laser | FS-H-1030 / 1~3000mW FS-F-1030 / 2~5W FS-Y-1030 / 5~50W |
| 1030 | Fiber IR Laser | FL-1030-SF / 1~10000mW FL-1030-CW/ 1~100W FL-1030-S / 1uW~500mW FL-1030-PS-Seed / 0.5~1mW FL-1030-PS / 1~2000mW FL-1030-Pico / 10-5000mW FL-1030-Nano / 0.5-10W FC-1030 / 1~550mW |
| 1040 | Single Longitudinal Mode IR Laser | FL-1040-SF / 1~10000mW |
| 1040 | Low Noise IR Laser | MLL-H-1040 / 1~100mW |
| 1040 | High Stability IR Laser | MIL-H-1040 / 1~100mW |
| 1040 | Fiber IR Laser | FL-1040-SF / 1~10000mW FC-1040 / 1~90mW |
| 1047 | Single Longitudinal Mode IR Laser | MSL-U-1047-SU / 1~800mW |
| 1047 | Low Noise IR Laser | MLL-U-1047-SU / 1~1000mW MLL-H-1047 / 1~1000mW |
| 1047 | High Stability IR Laser | MIL-H-1047 / 1~1000mW MIL-U-1047-SU / 1000~4000mW MIL-V-1047 / 4000~8000mW |
| 1047 | Passively Q-switched IR Laser | MPL-U-1047-SU / 1~150uJ / 1~300mW MPL-H-1047 / 50~150uJ / 1~300mW |
| 1047 | Actively Q-switched IR Laser | AO-S-1047 / 1~250uJ / 1~1300mW AO-V-1047 / 1~2000uJ/ 1~3W EO-1047-N / 1~2000uJ / 1~200mW |
| 1047 | Fiber IR Laser | FC-1040 / 1~3600mW |
| 1053 | Single Longitudinal Mode IR Laser | MSL-U-1053-SU / 1~200mW |
| 1053 | Low Noise IR Laser | MLL-U-1053-SU / 1~1500mW MLL-H-1053 / 1~1500mW |
| 1053 | TEM00 Mode IR Laser | TEM-F-1053SLD / 1~8mW |
| 1053 | High Stability IR Laser | MIL-H-1053 / 1~1500mW MIL-U-1053-SU / 1500~4000mW MIL-V-1053 / 4000~8000mW |
| 1053 | Passively Q-switched IR Laser | MPL-U-1053-SU / 1~50uJ / 1~450mW MPL-H-1053 / 30~50uJ / 300~450mW |
| 1053 | Actively Q-switched IR Laser | AO-S-1053 / 1~250uJ /1~1000mW EO-1053-N / 1~2000uJ / 1~200mW |
| 1053 | Fiber IR Laser | FC-1053 / 1~3600mW |
| 1064 | Single Longitudinal Mode IR Laser | MSL-DS-1064 / 1~300mW MSL-S-1064 / 1~700mW MSL-U-1064-SU / 700~1000mW MSL-R-1064 / 700 ~10000mW MSL-AO-1064 / 1~200uJ@1Hz~1kHz, 25ns |
| 1064 | Low Noise IR Laser | MLL-T-1064-SM / 1~2000mW MLL-S-1064 / 1~1500mW MLL-U-1064-SU / 1500~3000mW MLL-H-1064 / 1~3000mW MLL-N-1064 / 4000~5000 MLL-V-1064 / 6000~20000mW MLL-W-1064 / 6000~20000mW |
| 1064 | High Stability IR Laser | MIL-S-1064-SM / 1~1000mW MIL-T-1064-SM / 1000~2000mW MIL-S-1064 / 1~1500mW MIL-H-1064 / 1.5~3 W MIL-U-1064-SU / 3~4W MIL-N-1064 / 4~5W MIL-T-1064 / 1~10W MIL-W-1064 / 10~20W MIL-V-1064 / 10~20W FL-1064-CW / 1~200W HPL-1064-Q / 50~100W HPL-1064-QM / 100~300W HPL-1064-CW / 50~100W HPL-1064-CW / 100~500W HPL-1064-CW / 500~1000W |
| 1064 | Q-switched IR Laser | OEM-P-1064 / 1-20μJ MPL-T-1064 / 1-35μJ MPL-S-1064 / 1~70μJ MPL-H-1064 / 20~100μJ MPL-U-1064-SU / 1~200μJ MPL-FL-1064-A / 15~130μJ MPL-FL-1064-B / 150~300μJ MPL-S-1064-LP / ~200μJ MPL-S-1064-HP / 1~1000μJ AO-Mini-1064 / 1~300μJ AO-S-1064 / 1~350μJ AO-X-1064 / 1-670μJ AO-T-1064 / 1~700μJ AO-H-1064 / 1~1000μJ AO-1064A / 1~1000μJ AO-1064W & 532W / 800μJ & 300μJ EO-XS-1064 / 1~200μJ EO-HS-1064 / 1~400μJ EO-S-1064-L / 1~100μJ 他多数 |
| 1064 | Picosecond Pulsed IR Laser | FL-1064-PS / 1~200mW |
| 1064 | OEM IR Laser Module | FC-OEM-1064 / 1~1200mW MIL-S-1064-OEM / 1~1500mW OEM-N-1064 / 1500~5000mW OEM-W-1064 / 6000~20000mW PGL-VI-1064/ 1~300mW PGL-D12-1064 / 1~300mW PGL-FS-1064 / 1~500mW PGL-H1-1064 / 1~800mW PGL-H-1064 / 1~1500mW PGL-V-H-FP-1064 / 5~20mW PGL-V-H-1064/ 1~800mW |
| 1073 | High Stability IR Laser | MIL-F-1073 / 1~1500mW |
| 1073 | Tunable Wavelength IR Laser | TUN-1054~1074 / 1~10mW |
| 1073 | Fiber IR Laser | FC-1073 / 1~1350mW |
| 1085 | Low Noise IR Laser | MLL-U-1053-SU / 1~1000mW |
| 1085 | High Stability IR Laser | MIL-U-1085 / 1~1000mW |
| 1073 | Fiber IR Laser | FC-1085 / 1~900mW |
| 1105 | High Stability IR Laser | MIL-F-1105 / 1~500mW MIL-W-1105 / 500~4000mW |
| 1105 | Fiber IR Laser | FC-1105 / 1~450mW |
| 1112 | Single Longitudinal Mode IR Laser | MSL-U-1112-SU / 1~20mW |
| 1112 | Low Noise IR Laser | MLL-U-1112-SU / 1~100mW |
| 1112 | High Stability IR Laser | MIL-H-1112 / 1~500mW MIL-U-1112-SU / 500~2000mW MIL-T-1112 / 1200~7000mW |
| 1112 | Fiber IR Laser | FC-1112 / 1~1800mW |
| 1122 | Single Longitudinal Mode IR Laser | MSL-U-1122-SU / 1~80mW |
| 1122 | Low Noise IR Laser | MLL-U-1122-SU / 1~300mW |
| 1112 | High Stability IR Laser | MIL-H-1122 / 1~500mW MIL-U-1112-SU / 1~2mW |
| 1122 | Fiber IR Laser | FC-1112 / 1~6300mW |
| 1160 | High Stability IR Laser | MDL-XF-1160 / 1~5000mW |
| 1160 | Q-switched IR Laser | AO-K-1160 / 10~700mW |
| 1160 | Fiber IR Laser | FC-1160 / 1~13W |
| 1177 | High Stability IR Laser | MIL-U-1177-SU / 1~400mW MIL-H-1177 / 1~400mW |
| 1177 | Q-switched IR Laser | AO-K-1177 / 70uJ / 10~700mW |
| 1177 | Fiber IR Laser | FC-1177 / 1~360mW |
| 1202 | Q-switched IR Laser | AO-K-1202 / 10~700mW |
| 1313 | Single Longitudinal Mode IR Laser | MSL-U-1313-SU / 1~500mW |
| 1313 | Low Noise IR Laser | MLL-U-1313-SU / 1~100mW MLL-H-1313 / 1~1000mW |
| 1313 | High Stability IR Laser | MIL-H-1313 / 1~1000mW MIL-U-1313-SU / 1~2W |
| 1313 | Q-switched IR Laser | AMPL-U-1313-SU/ 1~20uJ / 1~100mW MPL-H-1313 / 10~20uJ / 1~100mW |
| 1313 | Fiber IR Laser | FC-1313 / 1~1800mW |
| 1319 | Single Longitudinal Mode IR Laser | MSL-U-1319-SU / 1~50mW |
| 1319 | Low Noise IR Laser | MLL-U-1319-SU / 1~500mW MLL-H-1319 / 1~1500mW |
| 1319 | High Stability IR Laser | MIL-U-1319-FL / 1~1500mW HPL-1319-CW / 20~50W HPL-1319-CW / 50~150W / 150~220W |
| 1319 | Q-switched IR Laser | MPL-U-1319-SU / 1~15uJ / 1~150mW MPL-H-1319 / 7~15uJ / 100~150mW AO-W-1319 / 1~800uJ / 1~2W HPL-1319-Q / 2~5mJ / 20~50W HPL-1319-QM/ 5~10mJ/ 50~100W |
| 1319 | Mode-locked Macro-Micro-Pulsed IR Laser | Macro / Micro-1319-P / 7W |
| 1319 | Fiber IR Laser | FC-1319 / 1~1350mW FC-W-1320B / 1~15W |
| 1335 | High Stability IR Laser | MIL-H-1335 / 1~500mW |
| 1335 | Fiber IR Laser | FC-1335 / 1~450mW |
| 1338 | High Stability IR Laser | MIL-H-1338 / 1~500mW |
| 1338 | Fiber IR Laser | FC-1338 / 1~450mW |
| 1342 | Single Longitudinal Mode IR Laser | MSL-U-1342-SU / 1~500mW MSL-R-1342 / 500~5000mW |
| 1342 | Low Noise IR Laser | MLL-U-1342-SU / 1~2000mW MLL-H-1342 / 1~2000mW MLL-N-1342 / 2000~3500mW MLL-W-1342 / 4000~6000mW |
| 1342 | High Stability IR Laser | MIL-H-1342 / 1~2000mW MIL-U-1342-SU /2~3mW MIL-N-1342 / 3~4W MIL-W-1342 / 4~6W |
| 1342 | Actively Q-switched IR Laser | EO-XS-1342 / 1~300uJ / 1-3W AO-S-1342 / 1~150uJ / 1mW~1.9W AO-W-1342 / 1~500uJ / 2~4W |
| 1342 | Fiber IR Laser | FC-1342 / 1~2700mW |
| 1357 | High Stability IR Laser | MIL-FN-1357 / 1~400mW |
| 1357 | Fiber IR Laser | FC-1357 / 1~360mW |
| 1413 | High Stability IR Laser | MIL-H-1413 / 1~300mW |
| 1413 | Fiber IR Laser | FC-1413 / 1~270mW |
| 1444 | Low Noise IR Laser | MLL-U-1444-SU / 1~400mW |
| 1444 | High Stability IR Laser | MIL-U-1444-SU / 1~400mW |
| 1444 | Passively Q-switched IR Laser | MPL-U-1444-SU / 1~3uJ / 1~10mW |
| 1444 | Fiber IR Laser | FC-1444 / 1~360mW |
| 1535 | Q-switched IR Laser Module | MPL-E-1535 / 40uJ / 100uJ / 200uJ / 300uJ / 400uJ MPL-T-1535 / 40uJ / 100uJ / 200uJ / 300uJ / 400uJ DPS-1535-P / 100uJ |
| 1535 | 1527～1660nm Wavelength Tunable IR Laser | TUN-W-1527~1660 / 1~2000mW |
| 1573 | TEM00 Mode IR DFB Laser | TEM-F-1573DFB / 1~20mW / MDL-III-1573DFB-SM / 1~15mW |
| 1573 | 1527～1660nm Wavelength Tunable IR Laser | TUN-W-1527~1660 / 1~2000mW |
| 1573 | 1500～1660nm CW IR Laser | MIL-W-1500~1700 / 1~2000mW |
| 1573 | Passively Q-switched IR Laser | MPL-H-1573 / 1~30uJ / 1~30mW |
| 1573 | Actively Q-switched IR Laser | AO-Y-1573 / 1~30uJ / 1~1000mW DPS-1573-A / 1~2mJ PS-1573-Q / 5~20mJ |
| 1645 | High Stability IR Laser | MIL-N-1645 / 1~1000mW |
| 1645 | 1527～1660nm Wavelength Tunable IR Laser | TUN-W-1527~1660 / 1~2000mW |
| 1645 | 1500～1660nm CW IR Laser | MIL-W-1500~1650 / 1~2000mW |
| 1910 | High Stability IR Laser | MDL-H-1910 / 1~500mW MIL-N-1910 / 1~600mW MIL-W-1910 / 1~13W |
| 1910 | Fiber IR Laser | FC-1910 / 1~10W FC-W-1908B / 10~60W |
| 1940 | High Stability IR Laser | MIL-N-1940 / 1~600mW MIL-W-1940 / 1~11W / 12~22W |
| 1940 | Fiber IR Laser | FL-1940-CW / 1~100W FC-1940 / 1~15W |
| 1990 | High Stability IR Laser | MIL-N-1990 / 1~600mW MIL-W-1990 / 1~11W |
| 2096 | High Stability IR Laser | MIL-W-2096 / 1~2.5W |
| 2096 | OEM IR Laser Module | OEM-IR-2096 / 1~20W |
| 2096 | Actively Q-switched IR Laser | OEM-AO-2096/ 1~15W |
| 2117 | High Stability IR Laser | MIL-W-2117 / 1~2200mW |
| 2120 | OEM IR Laser Module | OEM-IR-2120 / 1~10W |
| 2120 | Actively Q-switched IR Laser | OEM-AO-2120 / 1~3W |
| 2124 | High Stability IR Laser | MIL-W-2124 / 1~2500mW |
| 2128 | High Stability IR Laser | MIL-W-2128 / 1~1500mW |
| 2130 | OEM IR Laser Module | OEM-IR-2130 / 1~6W |
| 2600 | CW Mid-Infrared Laser at 2.6μm | MIL-W-2600 / 1~1000mW |
| 2600 | 2600～4410nm Wavelength Tunable IR Laser | TUN-W-2600~4410 / 1~1000mW |
| 2600 | Q-switched Mid-Infrared Laser at 2.6μm | AO-Y-2600 / 1~16.7uJ / 1~500mW |
| 2700 | 2600～4410nm Wavelength Tunable laser | TUN-W-2600~4410 / 1~1000mW |
| 2700 | CW / TTL Mid-Infrared Laser at 2.7μm | MIL-W-2700 / 1~1000mW MIL-W-2700 / 2803 / 2830 / 10-40uJ |
| 2796 | High Stability IR Laser | MIL-W-2796 / 10~300mW |
| 2796 | 2600～4410nm Wavelength Tunable laser | TUN-W-2600~4410 / 1~1000mW |
| 2800 | CW / TTL Mid-Infrared Laser at 2.8μm | MIL-W-2800 / 1~1000mW MIL-W-2700 / 2803 / 2830 / 10-40uJ |
| 2800 | CW Mid-Infrared Laser at 2.8μm | TUN-W-2600~4410/ 1~1000mW |
| 2800 | Q-switched Mid-Infrared Laser at 2.8μm | AO-Y-2800 / 1~16.7uJ / 1~500mW |
| 2830 | CW / TTL Mid-Infrared Laser at 2.8μm | MIL-W-2800 / 1~1000mW MIL-W-2700 / 2803 / 2830 / 10-40uJ |
| 2940 | CW Mid-Infrared Laser at 2.9μm | MIL-W-2940 / 1~1000mW |
| 2940 | CW Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~400mW TUN-W-2600~4410 / 1~1000mW |
| 2940 | High Energy Lamp Pumped IR Pulsed Laser | LPS-2940-S / 100~200mJ |
| 3000 | CW Mid-Infrared Laser at 3.0μm | MIL-V-3000 / 1~400mW MIL-W-3000 / 1~1000mW |
| 3000 | CW Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~400mW TUN-W-2600~4410 / 1~1000mW |
| 3000 | Q-switched Mid-Infrared Laser at 3.0μm | AO-Y-3000 / 1~16.7uJ / 1~500mW |
| 3200 | CW Mid-Infrared Laser at 3.2μm | MIL-V-3200 / 1~300mW MIL-W-3200 / 1~1000mW |
| 3200 | CW Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~200mW TUN-W-2600~4410 / 1~1000mW |
| 3200 | Q-switched Mid-Infrared Laser at 3.2μm | AO-Y-3000 / 1~16.7uJ / 1~500mW |
| 3200 | Picosecond Pulsed Mid-Infrared Laser | MIL-PS-3205 / 1~2000mW |
| 3390 | CW Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~300mW TUN-W-2600~4410 / 1~1000mW |
| 3390 | CW Mid-Infrared Laser | MIL-W-3390 / 1~1000mW |
| 3400 | CW Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~300mW TUN-W-2600~4410 / 1~9000mW |
| 3400 | CW Mid-Infrared Laser | MIL-W-3400 / 1~1000mW |
| 3400 | Q-switched Mid-Infrared Laser at 3.2μm | AO-Y-3000 / 1~16.7uJ / 1~500mW |
| 3600 | CW Mid-Infrared Laser at 3.6μm | MIL-V-3600 / 1~400mW MIL-W-3600 / 1~1000mW |
| 3600 | CW 2600~4410nm Wavelength Tunable Laser | TUN-W-2600~4410 / 1~900mW |
| 3600 | Q-switched Mid-Infrared Laser at 3.6μm | AO-Y-3000 / 1~16.7uJ / 1~500mW |
| 3800 | CW Mid-Infrared Laser at 3.8μm | MIL-V-3800 / 1~250mW MIL-W-3800 / 1~1000mW |
| 3800 | Q-switched Mid-Infrared Laser at 3.8μm | AO-Y-3000 / 1~16.7uJ / 1~500mW |
| 3800 | Picosecond Pulsed Mid-Infrared Laser | MIL-PS-3810 / 1~600mW |
| 3800 | Mid-Infrared Laser (3~5μm) | HPL-MIR / 1~9W |
| 3800 | CW 2600~4410nm Wavelength Tunable Laser | TUN-W-2600~4410 / 1~800mW |
| 3900 | CW Mid-Infrared Laser at 3.9μm | MIL-V-3900 / 1~200mW MIL-W-3900 / 1~800mW |
| 3900 | CW Wavelength Tunable IR Laser | TUN-V-2916~3918 / 1~100mW TUN-W-2600~4410 / 1~800mW |
| 3900 | Q-switched Mid-Infrared Laser at 3.9μm | HPL-MIR-3900 / 1~1000mW |
| 3900 | High Power Mid-Infrared Laser at 3.9~4.5μm | HPL-MIR / 1~9W |
| 4000 | CW Mid-Infrared Laser at 4.0μm | MIL-W-4000 / 1~500mW |
| 4000 | CW 2600~4410nm Wavelength Tunable Laser | TUN-W-2600~4410 / 1~500mW |
| 4000 | Q-switched Mid-Infrared Laser at 4.0μm | AO-Y-4000 / 1~16.7uJ / 1~100mW EO-XS-4000 / 1~400mW HPL-MIR-4000 / 1~2W |
| 4000 | Picosecond Pulsed Mid-Infrared Laser | MIL-PS-4000 / 1~600mW |
| 4000 | High Power Mid-Infrared Laser at 3.9~4.5μm | HPL-MIR / 1~9W |
| 4200 | CW Mid-Infrared Laser at 4.2μm | MIL-W-4200 / 1~200mW |
| 4200 | CW 2600~4410nm Wavelength Tunable IR Laser | TUN-W-2600~4410 / 1~200mW |
| 4200 | Q-switched Mid-Infrared Laser at 4.2μm | AO-Y-4200 / 1~16.7uJ / 1~100mW HPL-MIR-4200 / 1~2W |
| 4200 | High Power Mid-Infrared Laser at 3.9~4.5μm | HPL-MIR / 1~9W |
| 4400 | CW Mid-Infrared Laser at 4.2μm | MIL-W-4200 / 1~100mW |
| 4400 | CW 2600~4410nm Wavelength Tunable IR Laser | TUN-W-2600~4410 / 1~100mW |
| 4400 | Q-switched Mid-Infrared Laser at 4.4μm | HPL-MIR-4400 / 1~2W |
| 4400 | High Power Mid-Infrared Laser at 3.9~4.5μm | HPL-MIR / 1~9W |
| 4500 | Q-switched Mid-Infrared Laser at 4.5μm | HPL-MIR-4500 / 1~2W |
| 4500 | High Power Mid-Infrared Laser at 3.9~4.5μm | HPL-MIR / 1~9W |
| 4600 | Q-switched Mid-Infrared Laser at 4.5μm | HPL-MIR-4600 / 1~2W |
| 4800 | Q-switched Mid-Infrared Laser at 4.5μm | HPL-MIR-4800 / 1~2W |
IR (Diode IR)レーザー：種類
| 波長 (nm) | レーザータイプ | 型番・出力 |
| 785 | Single Longitudinal Mode Laser | MSL-III-785L / 1~80mW |
| 785 | ラマン分光向けIR Lasers | FC-D-785 / 1~450mW MDL-III-785-Lock / 1~600mW |
| 785 | Long Coherent Length IR Laser | MDL-C-785 / 1~50mW |
| 785 | Narrow Linewidth IR Laser | MDL-E-785 / 1~50mW TUN-779~791/ 1~10mW |
| 785 | Low Noise IR Laser | MLL-III-785L / 1~100mW MLL-III-785-Lock / 1~600mW MLL-III-785 / 1~2500mW |
| 785 | TEM00 Mode IR Laser | TEM-F-785 / 1~40mW |
| 785 | Nanosecond Pulsed IR Laser | MDL-NS-785 / 1~100mW |
| 785 | Picosecond Pulsed IR Laser | MDL-PS-785 / 1~50mW |
| 785 | High Stability IR Laser | MDL-III-785-SM / 1~50mW MDL-XS-785 / 1~80mW MDL-III-785L / 1~100mW MDL-III-785R / 1~350mW MDL-III-785 / 1~2500mW |
| 785 | Tunable Wavelength IR Laser | TUN-779~791 / 1~10mW TUN-TiN-770~840 / 1~400mW TUN-TiL-780-850 / 1~500mW TUN-Ti-770-840 / 1~1000mW TUN-TiA-770-840 / 1~2500mW |
| 785 | OEM IR Laser | PGL-F-785 / 1~50mW PGL-VI-785 / 1~100mW PGL-V-H-FP-785 / 20~80mW FC-OEM-785 / 1~1200mW |
| 785 | Fiber IR Laser | FC-785 / 1~3W |
| 786 | Tunable Wavelength IR Laser | TUN-779~791 / 1~10mW TUN-TiN-770~840 / 1~400mW TUN-TiL-780-850 / 1~500mW TUN-Ti-770-840 / 1~1000mW TUN-TiA-770-840 / 1~2500mW |
| 790 | IR Diode Laser at 790nm | MDL-III-790-SLD /1~12mW |
| 800 | Single Longitudinal Mode Laser | MSL-Ti-800 / 1~200mW |
| 800 | High Stability IR Laser | MDL-III-800R / 1~500mW MDL-H-800 / 1~2500mW |
| 800 | Tunable Wavelength IR Laser at 770~840nm | TUN-TiN-770~840 / 1~400mWTUN-TiL-780-850 / 1~500mW TUN-Ti-770-840 / 1~1000mW TUN-TiA-770-840 / 1~2500mW |
| 800 | IR Line Laser | MDL-800 / 1mW~2.5W |
| 800 | Fiber IR Laser | FC-800 / 1~10W |
| 808 | Single Longitudinal Mode Laser | MSL-Ti-808 / 1~200mW |
| 808 | ラマン分光向けIR Lasers | FC-D-808 / 1~450mW |
| 808 | Long Coherent Length IR Laser | MDL-C-808 / 1~30mW |
| 808 | Narrow Linewidth IR Laser | MDL-E-808 / 1~20mW TUN-802~814 / 1~5mW |
| 808 | TEM00 Mode IR Laser | TEM-F-808 / 1~200mW |
| 808 | Nanosecond Pulsed IR Laser | MDL-NS-808 / 1~100mW |
| 808 | Picosecond Pulsed IR Laser | MDL-PS-808 / 1~60mW |
| 808 | Low Noise IR Laser | MLL-III-808L / 1~100mW MLL-III-808 / 1~2500mW |
| 808 | High Stability IR Laser | MDL-III-808-SM / 1~15mW MDL-XS-808 / 1~80mW MDL-I-808 / 1~2500mW MDL-III-808L / 1~100mW MDL-III-808R / 1~500mW MDL-III-808 / 1~2500mW MDL-H-808 / 3000~6000mWMDL-XF-808 / 6000~12000mW MDL-SN-808 / 6~12W |
| 808 | Tunable Wavelength IR Laser at 770~840nm | TUN-TiN-770~840 / 1~400mWTUN-TiL-780-850 / 1~500mW TUN-Ti-770-840 / 1~1000mW TUN-TiA-770-840 / 1~2500mW |
| 808 | OEM IR Laser | YL-F-980 / 808 / 520 / 455 / 23W YL-F-980 / 808 / 635 / 455 / 23W YL-S-980 / 808/ 635/ 520 / 455 / 24W PGL / MDL-L series / 1~500mW PGL-D8-808 / 1~50mW PGL- FC-808 / 1~100mW PGL-V-H-FP-808 /30~150mW PGL-FS-808 / 1~100mW PGL-VI-808 / 1~200mW PGL-D12-808 / 1~400mWPGL-H-808/ 1~1500mW PGL-H1-808 / 1~1500mW PGL-V-H-808 / 1~2000mW |
| 808 | Fiber IR Laser | FC-808 / 1~20W FC-W-808 / 810 / 1~20W FC-W-808H / 50~2000mW |
| 820 | IR Diode Laser at 820nm | MDL-III-820-SLD / 1~12mW |
| 825 | High Stability IR Laser | MDL-H-825 / 1~2500mW |
| 825 | Tunable Wavelength IR Laser at 825nm | TUN-822~837 / 1~10mW TUN-TiN-770~840 / 1~400mW TUN-TiL-780-850 / 1~500mW TUN-Ti-770-840 / 1~1000mW TUN-TiA-770-840 / 1~2500mW |
| 825 | Fiber IR Laser | FC-825 / 1mW~5W |
| 830 | Single Longitudinal Mode Laser | MSL-III-830L / 1~80mW |
| 830 | ラマン分光向けIR Lasers | FC-D-830 / 1~300mW |
| 830 | Long Coherent Length IR Laser | MDL-C-830 / 1~30mW |
| 830 | Narrow Linewidth IR Laser | MDL-E-830 / 1~30mW TUN-822~837 / 1~10mW |
| 830 | Low Noise IR Laser | MLL-III-830L / 1~120mW MLL-III-830 / 1~2000mW |
| 830 | TEM00 Mode IR Laser | TEM-F-830SLD / 1~20mW TEM-F-830 / 1~30mW |
| 830 | Nanosecond Pulsed IR Laser | MDL-NS-830 / 1~120mW |
| 830 | High Stability IR Laser | MDL-III-830-SLD / 1~8mW MDL-III-830-SLD-SM / 1~8mW MDL-XS-830 / 1~100mW MDL-III-830-SM / 1~100mW MDL-III-830L / 1~120mW MDL-III-830R / 1~500mW MDL-III-830 / 1~2000mW |
| 830 | OEM IR Laser | PGL-F-830 / 1~50mW PGL/ MDL-L series / 1~200mW PGL-VI-830 / 1~100mW FC-OEM-830 / 1~1200mW |
| 830 | Fiber IR Laser | FC-830 / 1~5W |
| 845 | Low Noise IR Laser | MLL-III-845L / 1~30mW |
| 845 | High Stability IR Laser | MDL-III-845L / 1~30mW |
| 845 | Tunable Wavelength IR Laser at 825nm | TUN-845~856 / 1~10mW TUN-TiN-780~850 / 1~500mW |
| 845 | OEM IR Laser | PGL-F-845 / 1~50mW |
| 845 | Fiber IR Laser | FC-845 / 1~25mW |
| 850 | IR Diode Laser at 850nm | MDL-III-850-SLD / 1~4mW |
| 852 | ラマン分光向けIR Lasers | FC-D-852 / 1~100mW |
| 852 | Long Coherent Length IR Laser | MDL-C-852 / 1~80mW |
| 852 | Narrow Linewidth IR Laser | MDL-E-852 / 1~120mW TUN-841~856 / 1~10mW |
| 852 | Low Noise IR Laser | MLL-III-852L / 1~150mW MLL-III-852 / 1~1500mW |
| 852 | Nanosecond Pulsed IR Laser | MDL-NS-852 / 1~120mW |
| 852 | Picosecond Pulsed IR Laser | MDL-PS-852 / 1~30mW |
| 852 | High Stability IR Laser | MDL-XS-852 / 1~50mW MDL-III-852-SM / 1~70mW MDL-III-852L / 1~150mW MDL-III-852R / 1~300mW MDL-III-852 / 1~1500mW |
| 852 | Fiber IR Laser | FC-852 / 1~5W |
| 860 | Low Noise IR Laser | MLL-III-860 / 1~1000mW |
| 860 | High Stability IR Laser | MDL-III-860 / 1~1000mW MDL-H-860 / 1000~4000mW MDL-XF-860 / 4000~6000mW |
| 860 | Fiber IR Laser | FC-860 / 1mW~5W |
| 870 | Low Noise IR Laser | MLL-III-870L / 1~10mW |
| 870 | High Stability IR Laser | MDL-III-870L / 1~10mW |
| 879 | Fiber IR Laser | FC-W-793 /5~50W |
| 880 | Low Noise IR Laser | MLL-III-880L / 1~10mW MLL-III-880 / 1~1000mW |
| 880 | High Stability IR Laser | MDL-III-880-SLD / 1~8mW MDL-III-880-SLD-SM / 1~8mW MDL-III-880L / 1~10mW MDL-III-880 / 10~1000mW MDL-H-880 / 1~2W |
| 880 | IR Laser Module | PGL-V-H-FP-880 / 1~5mW |
| 880 | Fiber IR Laser | FC-880 / 1~4W FC-W-880 / 20~50W FC-W-880H / 50~500W |
| 885 | Low Noise IR Laser | MLL-III-880L / 1~10mW MLL-III-885 / 10~1000mW |
| 885 | High Stability IR Laser | MDL-III-885L / 1~10mW MDL-III-885 / 10~1000mW MDL-H-885 / 1~2W |
| 885 | Fiber IR Laser | FC-885 / 1mW~4W FC-W-880 /885A / 4~50W |
| 905 | Low Noise IR Laser | MLL-III-905L / 1~70mW MLL-III-905 / 1~400mW |
| 905 | TEM00 Mode IR Laser | TEM-F-905 / 1~60mW |
| 905 | Nanosecond Pulsed IR Laser | MDL-NS-905 / 1~70mW |
| 905 | Picosecond Pulsed IR Laser | MDL-PS-905 / 1~30mW |
| 905 | High Stability IR Laser | MDL-III-905-SM / 1~50mW MDL-III-905L / 1~70mW MDL-III-905 / 1~400mW |
| 905 | Diode Pulsed IR Laser | MDL-III-P-905 / >130W |
| 905 | IR Laser Module | PGL-VI-905 / 1~100mW PGL-V-H-FP-905 / 1~30mW |
| 915 | Narrow Linewidth IR Laser | MDL-E-915 / 1~30mW |
| 915 | Low Noise IR Laser | MLL-III-915 / 1~1500mW |
| 915 | Nanosecond Pulsed IR Laser | MDL-NS-915 / 1~200mW |
| 915 | Picosecond Pulsed IR Laser | MDL-PS-915 / 1~30mW |
| 915 | High Stability IR Laser | MDL-XS-915 / 1~100mW MDL-III-915L / 1~270mW MDL-III-915R / 1~350mW MDL-III-915 / 1~1500mW MDL-H-915 / 2000~4000mW MDL-F-915 / 5000~8000mW |
| 915 | IR OEM Laser | PGL-VI-915 / 1~100mW PGL / MDL-L series/ 1~300mW |
| 915 | Fiber IR Laser | FC-915 / 1~8W FC-W-915A / 20~50W FC-W-915H / 50~500W |
| 940 | Narrow Linewidth IR Laser | MDL-E-940 / 1~30mW TUN-918~941 / 1~10mW |
| 940 | Low Noise IR Laser | MLL-III-L-940 / 1~250mW MLL-III-940 / 1~1000mW |
| 940 | Nanosecond Pulsed IR Laser | MDL-NS-940 / 1~300mW |
| 940 | Picosecond Pulsed IR Laser | MDL-PS-940 / 1~60mW |
| 940 | High Stability IR Laser | MDL-III-940-SM / 1~100mW MDL-XS-940 / 1~100mW MDL-III-940L / 1~250mW MDL-III-940R / 1~350mW MDL-III-940 / 1~1000mW MDL-H-940 / 2000~4500mW MDL-XF-940 / 4500~6000mW |
| 940 | IR Laser Module | PGL-F-940 / 1~50mW PGL-VI-940 / 1~100mW PGL-V-H-FP-940 / 30mW PGL / MDL-L series / 1~500mW |
| 940 | Fiber IR Laser | FC-940 / 1~30W FC-W-938 / 940 / 30~50W FC-W-940H / 50~100W |
| 975 | ラマン分光向けIR Laser | FC-D-975 / 1~450mW |
| 975 | Narrow Linewidth IR Laser | MDL-E-975 / 1~30mW |
| 975 | Low Noise IR Laser | MLL-III-975 / 1~2000mW |
| 975 | TEM00 Mode IR Laser | TEM-F-975 / 1~1000mW |
| 975 | High Stability IR Laser | MDL-III-975R / 1~500mW MDL-III-975-SM / 1~1000mW MDL-III-975 / 1~2000mW MDL-H-975 / 3000~5000mW MDL-XF-975 / 5000~12000mW MDL-N-975 / 6000~10000mW |
| 975 | Fiber IR Laser | FC-975 / 1~30W FC-W-976 / 980A / 30~40W FC-W-976 / 980H / 50~100W / 110~150W |
| 980 | ラマン分光向けIR Laser | FC-D-980 / 1~450mW |
| 980 | Narrow Linewidth IR Laser | MDL-E-980 / 1~30mW |
| 980 | Low Noise IR Laser | MLL-III-980L / 1~200mW MLL-III-980 / 1~2500mW |
| 980 | TEM00 Mode IR Laser | TEM-F-980 / 1~1000mW |
| 980 | Nanosecond Pulsed IR Laser | MDL-NS-980 / 1~300mW |
| 980 | Picosecond Pulsed IR Laser | MDL-PS-980 / 1~50mW |
| 980 | High Stability IR Laser | MDL-III-980-SM / 1~1000mW MDL-XS-980 / 1~50mW MDL-III-980L / 1~200mW MDL-III-980R / 1~500mW MDL-III-980 / 1~2500mW MDL-I-980 / 1~2000mW MDL-H-980 / 3000~5000mW MDL-F-980 / 5000~80000mW MDL-XF-980 / 8000~12000mW MDL-SN-980 / 6~12W |
| 980 | IR OEM Laser | YL-F-980 / 808 / 520 / 455 / 23W YL-F-980 / 808 / 635 / 455 / 23W YL-S-980 / 808 / 635 / 520 / 455 / 24W PGL / MDL-L series / 1~1000mW PGL-D8-980 / 1~30mW PGL-V-H-FP-980 / 5~100mW PGL-VI-980 / 1~300mW PGL-D12-980/ 1~400mW PGL-FS-980 / 1~200mW PGL-V-H-980 / 1~2000mW PGL-H-980 / 1~1500mW |
| 980 | Fiber IR Laser | FC-980 / 1~30W FC-W-980 / 30~50W FC-W-980H / 50~150W |
| 1020 | High Stability IR Laser | MDL-F-1020 / 1~5000mW |
| 1020 | Fiber IR Laser | FC-1020 / 1~13W |
| 1035 | High Stability IR Laser | MDL-F-1035 / 1~5000mW |
| 1035 | Fiber IR Laser | FC-1035 / 1~13W |
| 1050 | IR Diode Laser at 1050nm | MDL-III-1050-SLD / 1~17mW |
| 1060 | TEM00 Mode IR Laser | TEM-F-1060 / 1~500mW TEM-F-1064 / 1~500mW |
| 1060 | Narrow Linewidth IR Laser | MDL-E-1060 / 1~40mW TUN-1054~1074 / 1~10mW |
| 1060 | Low Noise IR Laser | MLL-III-1060L / 1~200mW MLL-III-1060 / 1~1500mW |
| 1060 | Nanosecond Pulsed IR Laser | MDL-NS-1060 / 1~300mW MDL-NS-1064 / 1~300mW |
| 1060 | Picosecond Pulsed IR Laser | MDL-PS-1060 / 1~30mW MDL-PS-1064 / 1~30mW |
| 1060 | High Stability IR Laser | MDL-III-1060-SLD-SM / 1~17mW MDL-III-1060-SM / 1~500mW MDL-III-1064-SM / 1~500mW MDL-III-1060L / 1~200mW MDL-III-1060 / 1~1500mW MDL-H-1060 / 1500~2500mW MDL-XF-1060 / 2500~5000mW |
| 1060 | IR Laser Module | PGL-H-1060 / 1~1500mW |
| 1060 | Fiber IR Laser | FC-1060 / 1~20W FC-W-1060B /20~300W |
| 1120 | Single Longitudinal Mode Laser | FL-1120-SF / 1~1000mW |
| 1120 | Low Noise IR Laser | MLL-III-1120 / 1~1000mW |
| 1120 | High Stability IR Laser | MDL-III-1120 / 1~1000mW MDL-H-1120 / 1000~2500mW MDL-F-1120 / 2500~5000mW |
| 1120 | Fiber IR Laser | FL-1120-SF / 1~1000mW FL-1120-CW / 1~20W FC-1120 / 1~5W |
| 1190 | High Stability IR Laser | MDL-F-1190 / 1~4000mW |
| 1190 | Fiber IR Laser | FC-1190 / 1~10W |
| 1208 | High Stability IR Laser | MDL-H-1208 / 1~1500mW MDL-D-1208 / 1.5~3.5W |
| 1208 | Fiber IR Laser | FC-W-1208H / 1~10W |
| 1268 | TEM00 Mode IR Laser | TEM-F-1268DFB / 1~10mW MDL-III-1268DFB-SM / 1~10mW |
| 1270 | TEM00 Mode IR Laser | MDL-III-1270DFB-SM / 1~10mW |
| 1270 | High Stability IR Laser | MDL-H-1270 / 1~1000mW MDL-F-1270 / 1~5W |
| 1270 | Fiber IR Laser | FL-1270-CW / 1W FC-1270 / 1~5W FC-W-1208H / 1~10W |
| 1300 | IR Diode Laser at 1300nm | MDL-III-1300-SLD / 1~10mW |
| 1310 | Low Noise IR Laser | MLL-III-1310L / 1~10mW MLL-III-1310 / 10~800mW |
| 1310 | TEM00 Mode IR Laser | TEM-F-1310 / 1~5mW TEM-F-1310DFB / 1~10mW MDL-III-1310DFB-SM / 1~15mW |
| 1310 | Nanosecond Pulsed IR Laser | MDL-NS-1310 / 1~10mW |
| 1310 | High Stability IR Laser | MDL-III-1310-SLD / 1~17mW MDL-III-1310-SLD-SM / 1~17mW MDL-III-1310-SM / 1~15mW MDL-III-1310L / 1~10mW MDL-III-1310 / 10~800mW MDL-H-1310 / 800~3000mW |
| 1310 | IR Laser Module | PGL-VI-1310 / 1~10mW PGL-V-H-FP-1310 / 1~10mW |
| 1310 | Fiber IR Laser | FL-1310-CW / 1~5W FC-1310 / 1~5W |
| 1320 | Low Noise IR Laser | MLL-III-1320 / 1~800mW |
| 1320 | High Stablility IR Laser | MDL-III-1320-SLD / 1~34mW MDL-III-1320-SLD-SM / 1~34mW MDL-III-1320 / 1~800mW MDL-H-1320 / 800~3000mW |
| 1320 | Fiber IR Laser | FL-1320-CW / 1~10W FC-W-132-H / 10~30W |
| 1370 | Low Noise IR Laser | MLL-III-1370L / 1~15mW |
| 1370 | High Stablility IR Laser | MDL-III-1370-SM / 1~15mW MDL-III-1370L / 1~15mW |
| 1370 | TEM00 Mode IR Laser | TEM-F-1370DFB / 1~5mW MDL-III-1370DFB-SM / 1~15mW |
| 1370 | Fiber IR Laser | FC-1370 / 1~100mW |
| 1380 | Low Noise IR Laser | MLL-III-1380/ 1~800mW |
| 1380 | High Stablility IR Laser | MDL-III-1380 / 1~800mW |
| 1380 | Fiber IR Laser | FC-1380 / 1~1000mW FC-W-1380H / 1~200mW |
| 1392 | TEM00 Mode IR Laser | TEM-F-1392DFB / 1~10mW MDL-III-1392DFB-SM / 1~15mW |
| 1420 | Low Noise IR Laser | MLL-III-1420 / 1~500mW |
| 1420 | High Stablility IR Laser | MDL-III-1420 / 1~500mW MDL-H-1420 / 500~1500m |
| 1420 | Fiber IR Laser | FC-1420 / 1~1300mW |
| 1430 | Low Noise IR Laser | MLL-III-1430 / 1~500mW |
| 1430 | High Stablility IR Laser | MDL-III-1430 / 1~500mW MDL-H-1430 / 500~1500mW |
| 1430 | TEM00 Mode IR Laser | MDL-III-1430DFB-SM / 1~15mW |
| 1430 | Fiber IR Laser | FC-1430 / 1~1300mW |
| 1450 | Low Noise IR Laser | MLL-III-1450 / 1~1000mW |
| 1450 | High Stablility IR Laser | MDL-III-1450R / 1~200mW MDL-III-1450 / 1~1000mW |
| 1450 | TEM00 Mode IR Laser | TEM-F-1450DFB / 1~20mW MDL-III-1450DFB-SM / 1~15mW |
| 1450 | Fiber IR Laser | FC-1450 / 1~10W |
| 1470 | Low Noise IR Laser | MLL-III-1470 / 1~500mW |
| 1470 | High Stablility IR Laser | MDL-III-1470R / 1~200mW MDL-III-1470 / 1~500mW MDL-H-1470 / 500~1500mW MDL-N-1470 / 1500~3500mW |
| 1470 | TEM00 Mode IR Laser | TEM-F-1470DFB / 1~20mW MDL-III-1470DFB-SM / 1~15mW |
| 1470 | Fiber IR Laser | FC-1470 / 1~10W FC-W-1470H / 10~30W |
| 1480 | TEM00 Mode IR Laser | TEM-F-1480 / 1~350mW |
| 1480 | Fiber IR Laser | FC-1480 / 1~400mW |
| 1490 | TEM00 Mode IR Laser | TEM-F-1490DFB / 1~20mW MDL-III-1490DFB-SM / 1~15mW |
| 1532 | High Stablility IR Laser | MDL-H-1532 / 1~800mW MDL-XF-1532 / 800-2000mW MDL-N-1532 / 2000~3500mW |
| 1532 | TEM00 Mode IR Laser | TEM-F-1532DFB / 1~20mW MDL-III-1532DFB-SM / 1~15mW |
| 1532 | Wavelength Tunable IR Laser | TUN-W-1527~1660 / 1~2000mW |
| 1532 | Fiber IR Laser | FC-1532 / 1~3000W FC-W-1532H / 5~30W |
| 1540 | TEM00 Mode IR Laser | TEM-F-1540DFB / 1~20mW MDL-III-1540DFB-SM / 1~15mW |
| 1540 | Tunable Wavelength IR Laser at 1527~1660nm | TUN-W-1527~1660 / 1~2000mW |
| 1550 | Single Longitudinal Mode IR Laser | FL-1550-SF / 1~5000mW |
| 1550 | Narrow Linewidth IR Laser | SF-D-1550 / 1~15mW SF-III-1550 / 1~40mW |
| 1550 | Low Noise IR Laser | MLL-III-1550 / 1~1000mW MLL-III-1550L / 1~50mW |
| 1550 | TEM00 Mode IR Laser | TEM-F-1550 / 1~180mW TEM-F-1550DFB / 1~180mW MDL-III-1550DFB-SM / 1~180mW |
| 1550 | High Stablility IR Laser | MDL-III-1550-SLD / 1~8mW MDL-III-1550-SLD-SM / 1~8mW MDL-III-1550L MDL-III-1550R / 1~200mW MDL-III-1550 / 1~600mW MDL-H-1550 / 600~1000mW MDL-N-1550 / 1000~3500mW |
| 1550 | Diode Pulsed IR Laser | MDL-III-P-1550 / >15mW |
| 1550 | CW IR Laser at 1500~1700nm | MIL-W-1500~1700 / 1~2000mW |
| 1550 | IR Laser Module | PGL-VI-1550 / 1~10mW PGL/ MDL-L series / 1~10mW PGL-V-H-FP-1550 / 2~10mW |
| 1550 | Fiber IR Laser | FL-1550-SF / 1~5000mW FL-1550-CW/ 1~20W FL-1550-S / 1uW~10mW FL-1550-Pico / 100~1000mW FL-1550-Nano/ 50~1000mW FL-1550-AO / 1~20uJ FC-1550 / 1~10W FC-W-1550H / 10~30W |
| 1550 | TEM00 Mode IR Laser | TEM-F-1560DFB / 1~20mW MDL-III-1560DFB-SM / 1~15mW |
| 1590 | TEM00 Mode IR Laser | TEM-F-1590DFB / 1~20mW MDL-III-1590DFB-SM / 1~15mW |
| 1590 | Tunable Wavelength IR Laser at 1527~1660nm | TUN-W-1527~1660 / 1~2000mW |
| 1590 | CW IR Laser at 1500~1700nm | MIL-W-1500~1700 / 1~2000mW |
| 1610 | TEM00 Mode IR Laser | TEM-F-1610DFB / 1~20mW MDL-III-1610DFB-SM / 1~15mW |
| 1610 | CW IR Laser at 1500~1650nm | MIL-W-1500~1650 / 1~800mW |
| 1700 | High Stablility IR Laser | MDL-H-1700 / 1~100mW |
| 1700 | CW IR Laser at 1500~1650nm | MIL-W-1500~1700 / 1~3000mW |
| 1700 | Fiber IR Laser | FC-1700 / 1~80mW |
| 1720 | High Stablility IR Laser | MDL-H-1720 / 1~1000mW |
| 1720 | Fiber IR Laser | FC-1720 / 1~2.5W FC-W-1720B / 20~80W |
| 1850 | High Stablility IR Laser | MDL-F-1850 / 1~700mW |
| 1850 | Fiber IR Laser | FC-1850 / 1~900mW |
| 1870 | High Stablility IR Laser | MDL-H-1870 / 1~800mW |
| 1870 | Fiber IR Laser | FC-1870 / 1~1000mW FC-W-1870H / 1~80W |
| 1900 | High Stablility IR Laser | MDL-H-1900 / 1~500mW |
| 1900 | Fiber IR Laser | FC-1870 / 1~10W FC-W-1908B / 10~60W |
| 1920 | High Stablility IR Laser | MDL-H-1920 / 1~500mW |
| 1920 | Fiber IR Laser | FC-1920 / 1~10W FC-W-1920H / 10~80W |
| 1930 | High Stablility IR Laser | MDL-H-1930 / 1~600mW |
| 1930 | Fiber IR Laser | FC-1930 / 1~10W |
| 2160 | High Stablility IR Laser | MDL-H-2160 / 1~400mW |
| 2160 | Fiber IR Laser | FC-2160 / 1~500mW |
| 2200 | High Stablility IR Laser | MDL-H-2200 / 1~400mW |
| 2200 | Fiber IR Laser | FC-2200 / 1~500mW |
| 3100 | CW IR Laser at 3100nm | MIL-V-3100 / 1~300mW |
| 3100 | Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~200mW |
| 3300 | CW Mid-IR Laser at 3100nm | MIL-V-3300 / 1~400mW |
| 3700 | CW IR Laser at 3700nm | MIL-V-3700 / 1~250mW |
| 3700 | Tunable Wavelength IR Laser | TUN-V-2916~3918 / 1~100mW |
| 4100 | CW IR Laser at 4100nm | MIL-V-3700 / 1~80mW |
IR (Fiber IR)レーザー：種類
| 波長 (nm) | レーザータイプ | 型番・出力 |
| 775 | Single Longitudinal Mode Laser | FL-775-SF / 1~500mW |
| 775 | Fiber Laser | FL-775-SF / 1-500mW FL-775~Pico / 50~200mW |
| 775 | Tunable Wavelength IR Laser | TUN-TiN-770~840 / 1~400mW TUN-TiL-780-850 / 1~500mW TUN-Ti-770-840 / 1~1000mW TUN-TiA-770-840 / 1~2500mW |
| 1080 | Single Longitudinal Mode Laser | FL-1080-SF / 1~10000mW |
| 1080 | Fiber Laser | FL-1080-SF / 1-10000mW FL-1080-CW / 1~200W FL-1080-Pico / 10-5000mW FL-1080-Nano / 0.5~10W |
| 1178 | IR Fiber Laser at 1178nm | FL-1178-CW / 1~10W |
| 1240 | High Power All Fiber Laser | FL-1240-CW / 1~15W |
| 1484 | High Power All Fiber Laser | FL-1484-CW / 1~10W |
