CNI_Green
CNI社 緑色レーザー
CNI社の緑色レーザーはDPSSレーザー (ダイオード励起固体) とダイオードレーザーです。レーザーヘッドには冷却および精密な温度制御システムが搭載されており、電源には過電流および過熱保護機能が搭載されています。
当社レーザーは安定した出力や簡単な操作、信頼性の高い性能、そして長寿命を備えています。

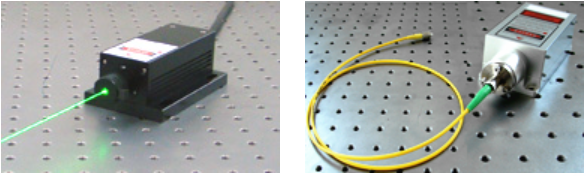

レーザー製品には、高エネルギー、狭パルス幅、高出力、高安定性、低ノイズ、シングル縦モードレーザーの6シリーズがあります。 フリースペースまたはファイバー結合の (SMファイバー、MMファイバー、均質化ファイバー) 出力タイプからお選びいただけます。
緑色レーザー：種類
| シリーズ | 特徴 | 数値 |
| Pulsed green laser | energy | >450μJ |
| Narrow pulse width green laser | pulse width | <0.8ns |
| High power green laser | power | >200W |
| High stability green laser | stability | <0.1% |
| Low noise green laser | noise | <0.25% |
| Single longitudinal mode green laser | line width | <0.00001nm. |
緑色レーザー：波長ラインナップ
1. DPSSレーザー
501nm 514nm 515nm 522nm 523nm
526nm 530nm 540nm 532nm 536nm
537nm 543nm 545nm 550nm 552nm
555nm 556nm 558nm 561nm
2. ダイオードレーザー
505nm 510nm 520nm
緑色 (DPSS Green)レーザー 一覧
| 波長(nm) | レーザータイプ | 型番・出力 |
| 510 | High Stability Green Laser | MGL-U-501-SF / 1~200mW MGL-DF-501 / 200~600mW |
| 514 | ラマン分光向けGreen Laser | FC-D-514.5 / 1~20mW |
| 514 | Long Coherent Length Green Laser | MDL-C-514.5 / 1~20mW |
| 514 | Narrow Linewidth Green Laser | MDL-E-514.5 / 1~20mW |
| 514 | Low Noise Green Laser | MDL-III-514.5-SM / 1~50mW |
| 514 | High Stability Green Laser | MDL-III-514.5-SM / 1~10mW MDL-III-514.5 / 1~50mW MDL-III-514.5 / 1～500mW |
| 514 | Fiber Green Laser | FC-514.5 / 1~500mW |
| 515 | Single Longitudinal Mode Laser | MSL-F-515 / 1~20mW FL-515-SF / 1~500mW |
| 514 | Low Noise Green Laser | MLL-N-515 / 1~100mW |
| 514 | High Stability Green Laser | MGL-F-515 / 1~100mW MGL-N-515 / 100~150mW MGL-W-515A / 150～500mW |
| 515 | Q-switched Green Laser | MPL-N-515 / 1~30uJ / 1~60mW |
| 515 | Picosecond Green Laser | MPL-N-515 / 1~180W |
| 515 | Femtosecond Green Laser | FS-Y-515 / 1~20W |
| 515 | Fiber Green Laser | FL-515-SF / 1-500mW FL-515-PS / 1-200mW FL-515-Pico / 1-1000mW FL-515-Nano / 1-1000mW FC-515 / 1～90mW |
| 522 | Single Longitudinal Mode Laser | MSL-FN-522/ 1~100mW |
| 522 | 518-522nm Wavelength Tunable Laser | TUN-518-522 / 1~10mW |
| 522 | Low Noise Green Laser | MLL-FN-522 / 1~400mW |
| 522 | High Stability Green Laser | MGL-FN-522 / 1~400mW MGL-DP-522-A / 400~1500mW MGL-DP-522-B / 1.5~3W MGL-DP-522-C / 3~7W |
| 522 | Fiber Green Laser | FC-522 / 1~6000mW |
| 523 | Single Longitudinal Mode Laser | MSL-FN-523.5 / 1~100mW MSL-FN-523 / 100~1000mW |
| 523 | Low Noise Green Laser | MLL-FN-523.5 / 1~600mW |
| 523 | High Stability Green Laser | MGL-FN-523.5 / 1~800mW MGL-N-523.5 / 1~800mW |
| 523 | Passively Q-switched Green Laser | MPL-U-523.5 / 1~60μJ / 1~150mW MPL-H-523.5 / 1~60uJ / 1~150mW |
| 523 | Actively Q-switched Green Laser | AO-S-523.5 / 1~50uJ / 1~100mW AO-S-523.5-H / 1~100uJ / 1~300mW AO-V-523 / 1~433uJ / 1~1.3W |
| 523 | Fiber Green Laser | FC-523.5 / 1~720mW |
| 526 | Single Longitudinal Mode Laser | MSL-FN-526.5 / 1~100mW |
| 526 | Low Noise Green Laser | MLL-FN-526.5 / 1~400mW |
| 526 | High Stability Green Laser | MGL-FN-526.5 / 1~400mW MGL-N-526.5 / 1~1000mW |
| 526 | Q-switched Green Laser | AO-S-526.5 / 1~20μJ/ 1~50mW AO-S-526.5-H / 1~100μJ / 1~300mW MPL-U-526.5 / 1~60μJ / 1~150mW MPL-H-526.5 / 1~60μJ / 1~150mW |
| 526 | Fiber Green Laser | FC-526.5 / 1~360mW |
| 530 | High Stability Green Laser | MGL-DS-530 / 1~50mW |
| 530 | Fiber Green Laser | FC-530 / 1~45mW |
| 532 | High Stability Green Laser | MGL-S-532-SM / 1~50mW MGL-F-532-SM / 150~1000mW MGL-V-532-SM / 1000~2000mW MGL-U-532 / 1~1500mW MGL-DS-532 / 1~150mW MGL-S-532 / 1~300mW 他多数 |
| 532 | Low Noise Green Laser | MLL-U-532-SM / 1~200mW MLL-F-532-SM / 200~1000mW MLL-V-532-SM / 1000~2000 MLL-S-532 / 1~300mW MLL-U-532 / 300~1500mW MLL-FN-532 1000~2500mW MLL-F-532 / 1~2500mW MLL-V-532 / 1~15 W |
| 532 | Single Longitudinal Mode Green Laser | MSL-U-532 / 1~1000mW MSL-S-532 / 1~100mW MSL-DS-532 / 1~100mW MSL-R-532 / 1~10W MSL-III-532-AOM / 1~30W MSL-FN-532-AOM / 30~800mW MSL-AO-532 / 1~100uJ@1Hz~1kHz FL-532-SF / 1~2000mW |
| 532 | Q-switched Green Laser | MPL-T-532 / 1-10μJ MPL-H-532 / 5-30μJ MPL-U-532 / 1-60μJ EL-532 / 50-125μJ MPL-S-532-LP / ~80μJ MPL-S-532-HP / 1-400μJ AO-S-532 / 1-100μJ AO-Mini-532 / 1-100μJ AO-S-532-H / 1-250μJ AO-532A / 1-300μJ AO-Mini-E-532 / 100-300μJ 他多数 |
| 532 | Picosecond Green Laser | PS-A-532 / 1W / 3W PS-D-532-Air / 1~3W PS-D-532 / 1~50W |
| 532 | High Power OEM Green Laser | MGL-S-532-OEM / 1~300mW MGL-U-532-OEM / 300~1500mW OEM-N-532 / 1500~5000mW OEM-I-532 / 5W OEM-W-532-Water / 5~10W OEM-W-532 / 5~18W MGL-D-532-OEM / 20~30W |
| 536 | High Stability Green Laser | MGL-FN-536 / 1~500mW MGL-A-536 / 500~4000mW |
| 536 | Fiber Green Laser | FC-536 / 1~3600mW |
| 536 | High Stability Green Laser | MGL-FN-537 / 1~30mW |
| 537 | Fiber Green Laser | FC-537 / 1~27mW |
| 540 | Single Longitudinal Mode Green Laser | FL-540-SF / 1-500mW |
| 540 | High Stability Green Laser | MGL-F-540 / 1~500mW |
| 540 | Fiber Green Laser | FL-540-SF / 1~500mW FL-540-Pico / 1~1000mW FL-540-Nano/ 1~1000mW FC-540 / 1~450mW |
| 543 | Single Longitudinal Mode Green Laser | MSL-FN-543/ 1~100mW |
| 543 | High Stability Green Laser | MGL-U-543 / 1~200mW MGL-FN-543 / 1~1000mW MGL-N-543 / 1000~1500m |
| 543 | Narrow Linewidth Green Laser | MLL-FN-543 / 1~200mW |
| 543 | OEM Green Laser Module | MGL-U-543-OEM / 1~200mW |
| 543 | Fiber Green Laser | FC-543 / 1~900mW |
| 543.5 | High Stability Green Laser | MGL-FN-543.5 / 1~100mW |
| 543.5 | Narrow Linewidth Green Laser | MLL-FN-543.5 / 1~100mW |
| 545 | High Stability Green Laser | MGL-FN-545 / 1~100mW MGL-DP-545-B / 100~500mW |
| 550 | Single Longitudinal Mode Green Laser | FL-550-SF / 1-100mW |
| 550 | Low Noise Green Laser | MLL-FN-550 / 1~80mW MLL-U-550 / 80~100mW |
| 550 | High Stability Green Laser | MGL-FN-550 / 1~200mW |
| 550 | Fiber Green Laser | FL-550-SF/ 1-100mW FC-550 / 1~180mW |
| 552 | Single Longitudinal Mode Green Laser | MSL-FN-552 / 1~100mW |
| 552 | High Stability Green Laser | MGL-FN-552 / 1~300mW MGL-W-552 / 300~2000mW MGL-A-552 / 300~2000mW |
| 552 | Fiber Green Laser | FC-552 / 1~270mW |
| 555 | High Stability Green Laser | MGL-FN-555 / 1~100mW |
| 555 | Fiber Green Laser | FC-555 / 1~90mW |
| 556 | Single Longitudinal Mode Yellow Green Laser | MSL-FN-552 / 1~100mW MSL-FN-556-AOM / 1~80mW |
| 556 | Low Noise Yellow Green Laser | MLL-FN-556 / 1~200mW |
| 556 | High Stability Yellow Green Laser | MGL-U-556 / 1~200mW MGL-FN-556 / 1~800mW MGL-N-556 / 800~1000mW MGL-W-556A / 1000~2500mW MGL-FN-556-AOM / 1~100mW MGL-N-556-AOM / 100~800mW |
| 558 | High Stability Yellow Green Laser | MGL-N-558 / 1~500mW |
| 558 | Fiber Green Laser | FC-558 / 1~450mW |
| 561 | Single Longitudinal Mode Yellow Green Laser | MSL-FN-561 / 1~150mW MSL-FN-561-AOM / 1~100mW |
| 561 | Low Noise Yellow Green Laser | MLL-U-561-XU / 1~50mW MLL-U-561-SM / 1~40mW MLL-U-561 / 1~200mW MLL-FN-561 / 200~400mW |
| 561 | High Stability Yellow Green Laser | MGL-S-561 / 1~50mW MGL-U-561 / 50~300mW MGL-FN-561 / 1~1000mW MGL-N-561 / 1~1000mW MGL-W-561A / 1000~2000mW MGL-FN-561-AOM / 1~100mW MGL-N-561-AOM / 100~800mW |
| 561 | OEM Yellow Green Laser | MGL-S-561-OEM / 1~50mW MGL-U-561-OEM / 50~300mW OEM-I-561SM / 1~30mW OEM-I-561 / 1~300mW PGL-VI-561 / 1~5mW PGL-H1-561 / 1~10mW |
| 561 | Fiber Green Laser | FC-561 / 1~900mW |
緑色 (Diode Green)レーザー 一覧
| 波長(nm) | レーザータイプ | 型番・出力 |
| 505 | Low Noise Green Laser | MDL-III-505 / 1~50mW |
| 505 | Nanosecond Green Laser | MDL-NS-505 / 1~20mW |
| 505 | High Stability Green Laser | MDL-III-505-SM / 1~30mW MDL-XS-505 / 1~50mW MDL-III-505L / 1~50mW MDL-XS-G-505/SM/1-2/50 / >10mW |
| 505 | Fiber Green Laser | FC-505 / 1~500mW |
| 510 | Low Noise Green Laser | MLL-III-510 / 1~30mW |
| 510 | Nanosecond Pulsed Green Laser | MDL-NS-510 / 1~20mW |
| 510 | High Stability Green Laser | MDL-III-510 / 1~30mW MDL-XS-510 / 1~50mW |
| 510 | Fiber Green Laser | FC-510 / 1~500mW |
| 520 | Single Longitudinal Mode Green Laser | FL-520-SF / 1-500mW |
| 520 | Long Coherent Length Green Laser | MDL-C-520 / 1~10mW |
| 520 | Narrow Linewidth Green Laser | MDL-E-520 / 1~10mW TUN-518-522 / 1~10mW |
| 520 | TEM00 Mode Green Laser | TEM-F-520 / 1~50mW |
| 520 | Nanosecond Pulsed Green Laser | MDL-NS-520 / 1~100mW |
| 520 | Picosecond Pulsed Green Laser | MDL-PS-520 / 1~30mW |
| 520 | Low Noise Green Laser | MDL-III-520L / 1~50mW MLL-III-520 / 1~800mW |
| 520 | High Stability Green Laser | MDL-XS-520 / 1~50mW MDL-III-520-SM / 1~50mW MDL-III-520L / 1~50mW MDL-III-520 / 1~800mW MDL-H-520 / 800~1000mW F-520-HS / 1~800mW MDL-SD-520 / 800~1500mW MDL-HD-520 / 1.5~4W MDL-XD-520 / 4~10W |
| 520 | OEM Green Laser Module | YL-520 / 1~6W YL-I-520 / 1~70W YL-F-980 / 808 / 520 / 455 / 23W YL-S-980/ 808 / 635 / 520 / 455 / 24W F-520-HS-OEM/ 1~800mW MDL-SD-520-OEM / 800-1500mW MDL-HD-520-OEM / 1.5~4W MDL-XD-520-OEM / 4~10W OEM-BD-520 / 11~20W PGL / MDL-L series / 1~1000mW PGL-D8-520 / 1~30mW PGL-D12-520 / 1~50mW PGL-VI-520 / 1~100mW PGL-F-520 / 1~50mW PGL-FS-520/ 1~100mW PGL-V-H-520 / 1~800mW PGL-H-520 / 1~800mW |
| 520 | Fiber Green Laser | MxL-520 (FC) / 1~8W FC-520 / 1~20W FC-W-520H-II / 20~70W |
